SKU: NKI40/30-EU

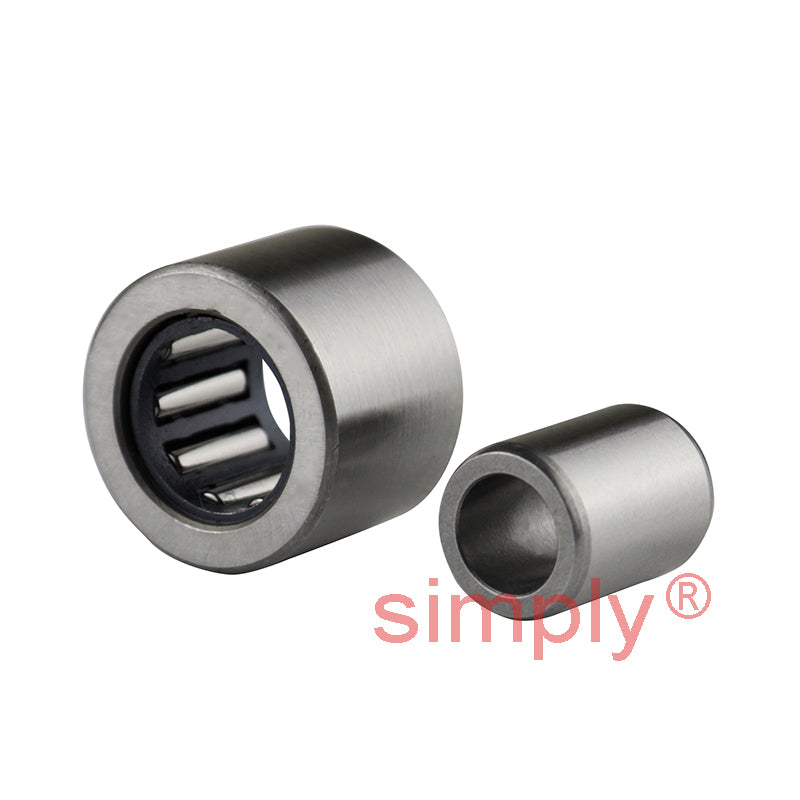

NKI40/30 Budget Needle Roller Bearing / Shaft Sleeve 40x55x30mm
NKI40/30 Budget Needle Roller Bearing / Shaft Sleeve 40x55x30mm
Regular price
£10.82
ex VAT£12.98inc. VAT
Regular price
Sale price
£10.82
ex VAT£12.98
inc. VAT
In stock
Price Break
10+
£9.63
19+
£9.09
29+
£8.98
39+
£8.87
49+
£8.76
74+
£8.66
99+
£8.12
199+
£8.01
249+
£7.90
499+
£7.79
999+
£7.57
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 55mm
- Width:
- 30mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 55mm |
| B | 30mm |
| Dynamic load C | 40200 N |
| Static load Co | 93000 N |
| Fatigue load limit Pu | 12000 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| F | 45mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 42mm |
| Da max | 53mm |
| ra max | 0.3mm |
