SKU: NKI30/20TN-MB

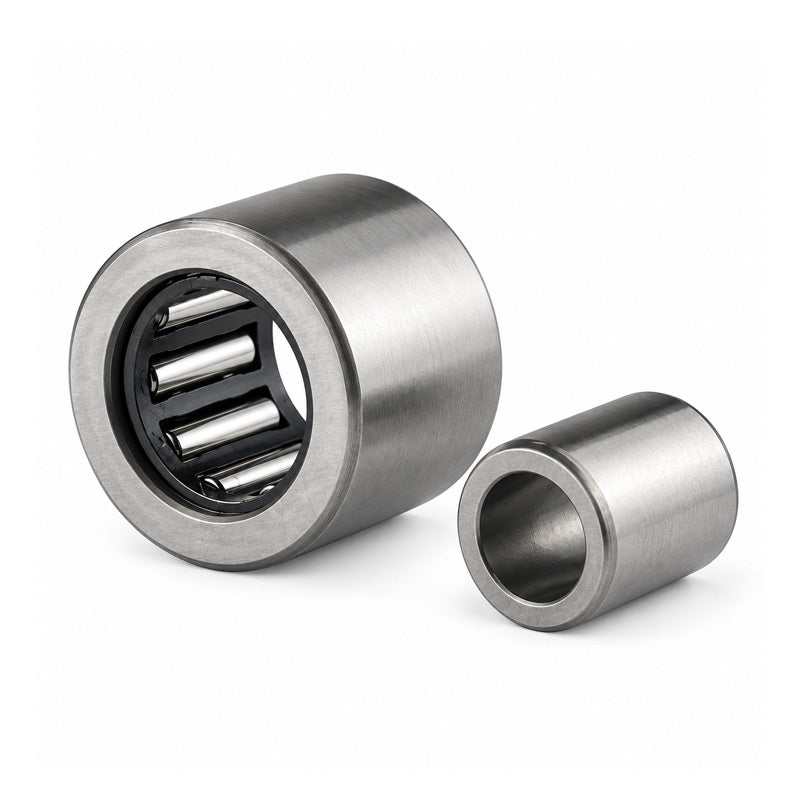

Major Brand NKI30/20TN Needle Roller Bearing With Shaft Sleeve 30x45x20mm
Major Brand NKI30/20TN Needle Roller Bearing With Shaft Sleeve 30x45x20mm
Regular price
£18.52
ex VAT£22.22inc. VAT
Regular price
Sale price
£18.52
ex VAT£22.22
inc. VAT
In stock
Price Break
10+
£16.48
19+
£15.56
29+
£15.37
39+
£15.19
49+
£15.00
74+
£14.82
99+
£13.89
199+
£13.70
249+
£13.52
499+
£13.33
999+
£12.96
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 45mm
- Width:
- 20mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 45mm |
| B | 20mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Fatigue load limit Pu | 5700 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 35mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 32mm |
| Da max | 43mm |
| ra max | 0.3mm |
