SKU: NKI22/16-EU

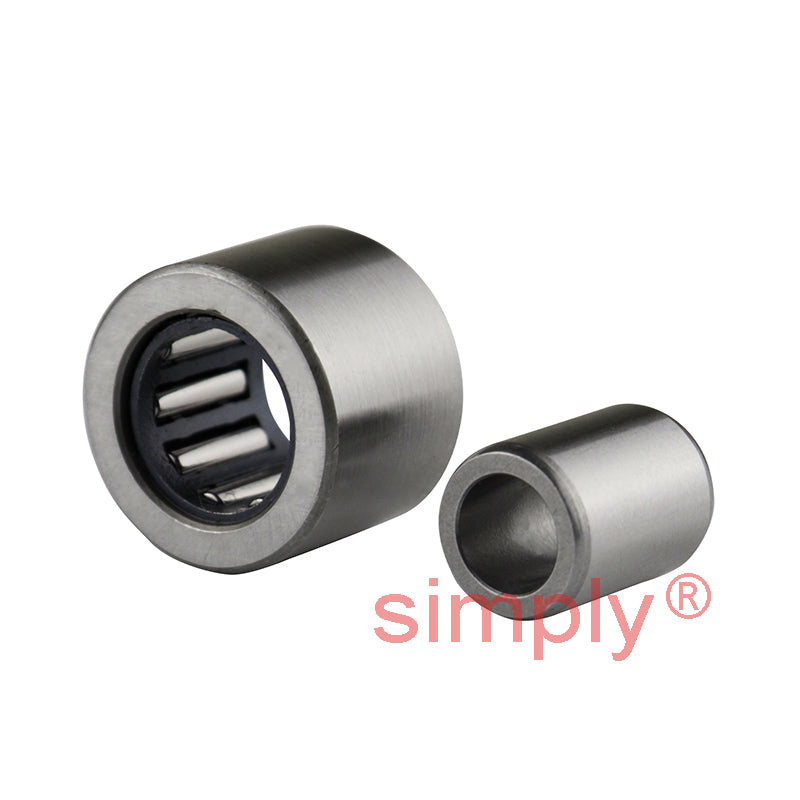

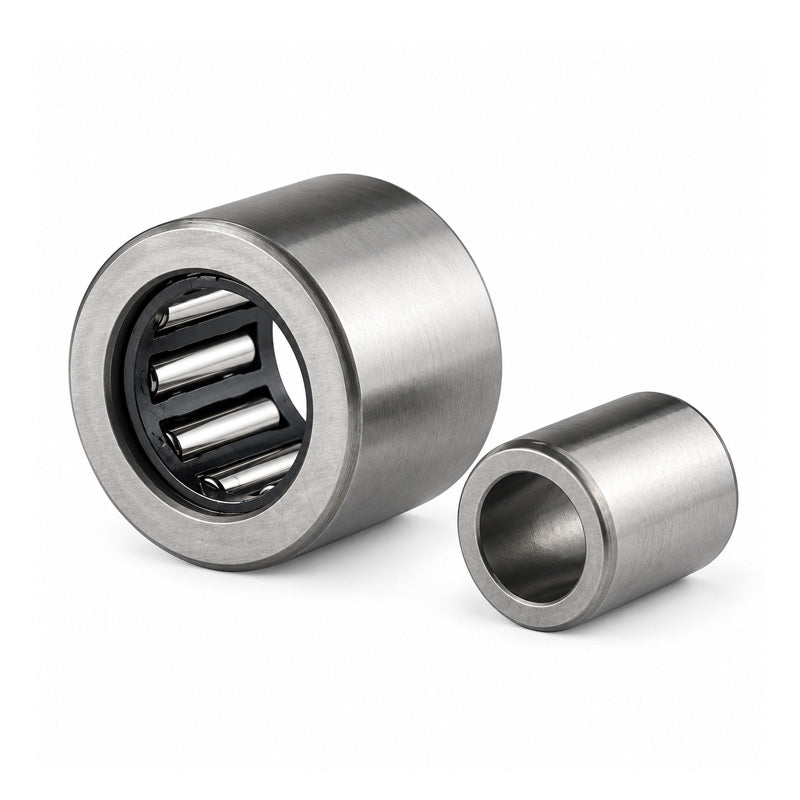

NKI22/16 Budget Needle Roller Bearing / Shaft Sleeve 22x34x16mm
NKI22/16 Budget Needle Roller Bearing / Shaft Sleeve 22x34x16mm
Regular price
£6.91
ex VAT£8.29inc. VAT
Regular price
Sale price
£6.91
ex VAT£8.29
inc. VAT
In stock
Price Break
10+
£6.15
19+
£5.80
29+
£5.74
39+
£5.67
49+
£5.60
74+
£5.53
99+
£5.18
199+
£5.11
249+
£5.04
499+
£4.98
999+
£4.84
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 34mm
- Width:
- 16mm
Technical
Technical
| d | 22mm |
|---|---|
| D | 34mm |
| B | 16mm |
| Dynamic load C | 15700 N |
| Static load Co | 26000 N |
| Fatigue load limit Pu | 3200 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 26mm |
| r1r2 | 0.3mm |
| S (axial disp) | 0.5mm |
| da min | 24mm |
| Da max | 32mm |
| ra max | 0.3mm |
