SKU: NKI100/30-EU

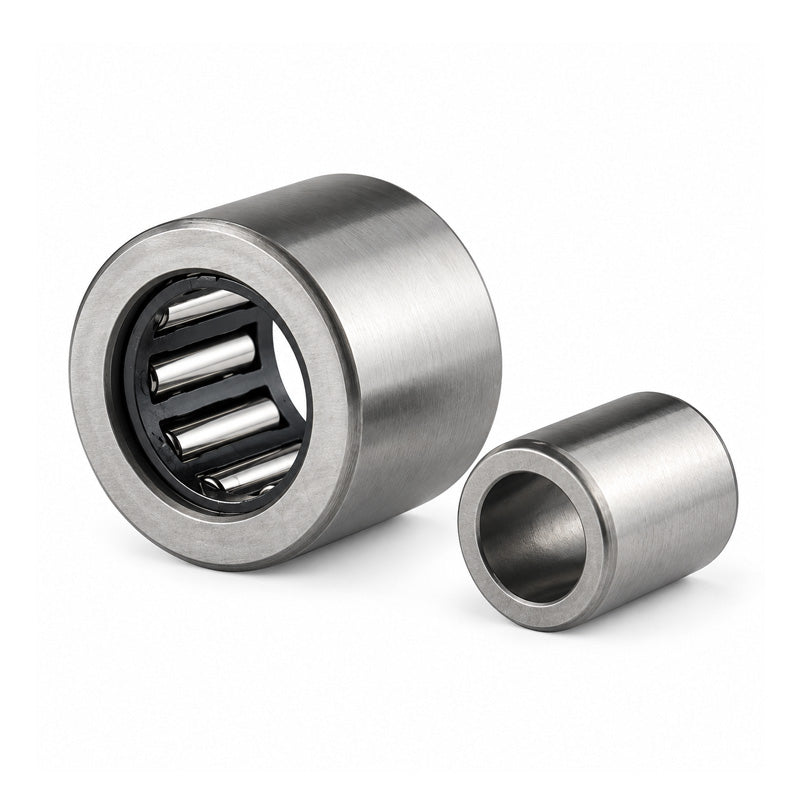

NKI100/30 Budget Needle Roller Bearing / Shaft Sleeve 100x130x30mm
NKI100/30 Budget Needle Roller Bearing / Shaft Sleeve 100x130x30mm
Regular price
£163.40
ex VAT£196.08inc. VAT
Regular price
Sale price
£163.40
ex VAT£196.08
inc. VAT
In stock
Price Break
10+
£145.43
19+
£137.26
29+
£135.62
39+
£133.99
49+
£132.35
74+
£130.72
99+
£122.55
199+
£120.92
249+
£119.28
499+
£117.65
999+
£114.38
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 130mm
- Width:
- 30mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 130mm |
| B | 30mm |
| Dynamic load C | 96800 N |
| Static load Co | 220000 N |
| Fatigue load limit Pu | 27500 N |
| Speed in grease | 2400 rpm |
| Speed in oil | 3600 rpm |
| F | 110mm |
| r1r2 | 1.1mm |
| S (axial disp) | 1.5mm |
| da min | 106.5mm |
| Da max | 123.5mm |
| ra max | 1mm |
