SKU: NK9/12TN-EU

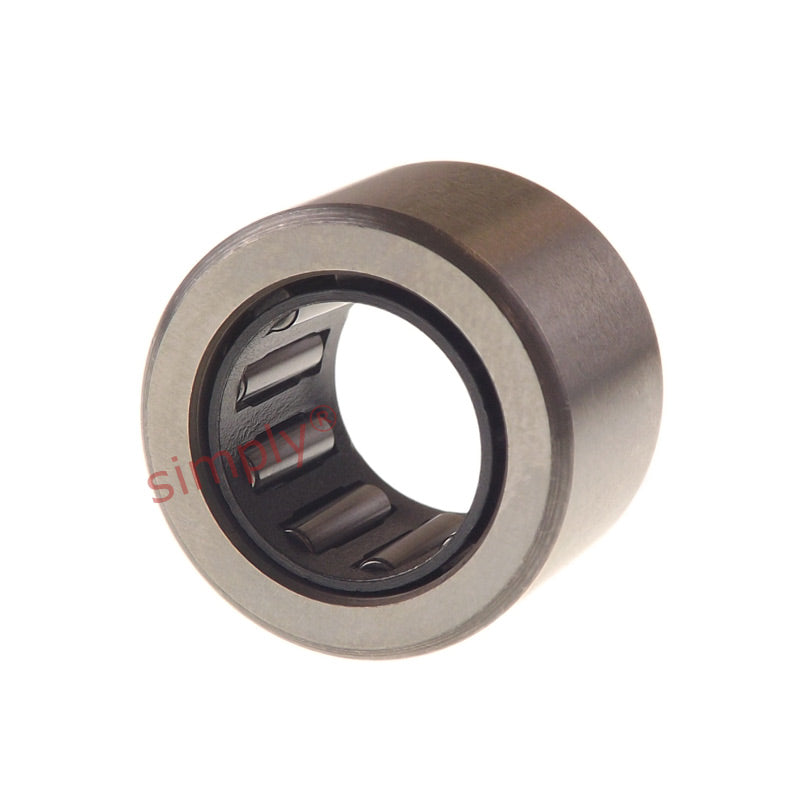

NK9/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 9x16x12mm
NK9/12TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 9x16x12mm
Regular price
£7.08
ex VAT£8.50inc. VAT
Regular price
Sale price
£7.08
ex VAT£8.50
inc. VAT
In stock
Price Break
10+
£6.30
19+
£5.95
29+
£5.88
39+
£5.81
49+
£5.73
74+
£5.66
99+
£5.31
199+
£5.24
249+
£5.17
499+
£5.10
999+
£4.96
Couldn't load pickup availability
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 16mm
- Width:
- 12mm
Technical
Technical
| Fw | 9mm |
|---|---|
| D | 16mm |
| C | 12mm |
| Dynamic load C | 4400 N |
| Static load Co | 5200 N |
| Fatigue load limit Pu | 570 N |
| Speed in grease | 24000 rpm |
| Speed in oil | 36000 rpm |
| r1r2 | 0.3mm |
| Da max | 14mm |
| ra max | 0.3mm |
| Seal | G9x16x3 |
| Weight | 10 g |
