SKU: NK75/25-MB

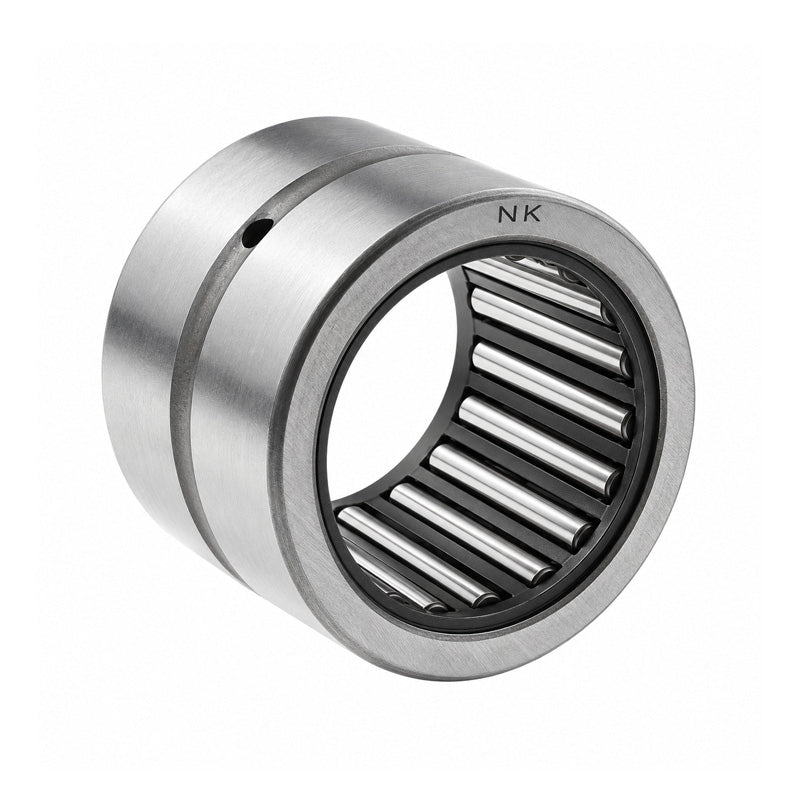

Major Brand NK75/25 Needle Roller Bearing With Flanges without Shaft Sleeve 75x92x25mm
Major Brand NK75/25 Needle Roller Bearing With Flanges without Shaft Sleeve 75x92x25mm
Regular price
£68.51
ex VAT£82.21inc. VAT
Regular price
Sale price
£68.51
ex VAT£82.21
inc. VAT
In stock
Price Break
10+
£60.97
19+
£57.55
29+
£56.86
39+
£56.18
49+
£55.49
74+
£54.81
99+
£51.38
199+
£50.70
249+
£50.01
499+
£49.33
999+
£47.96
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 92mm
- Width:
- 25mm
Technical
Technical
| Fw | 75mm |
|---|---|
| D | 92mm |
| C | 25mm |
| Dynamic load | 53900 N |
| Static load | 110000 N |
| Fatigue load limit Pu | 14000 N |
| Speed in grease | 3800 rpm |
| Speed in oil | 5300 rpm |
| r1r2 | 1mm |
| Da max | 87mm |
| ra max | 1mm |
| Weight | 320 g |
