SKU: NK70/35-EU

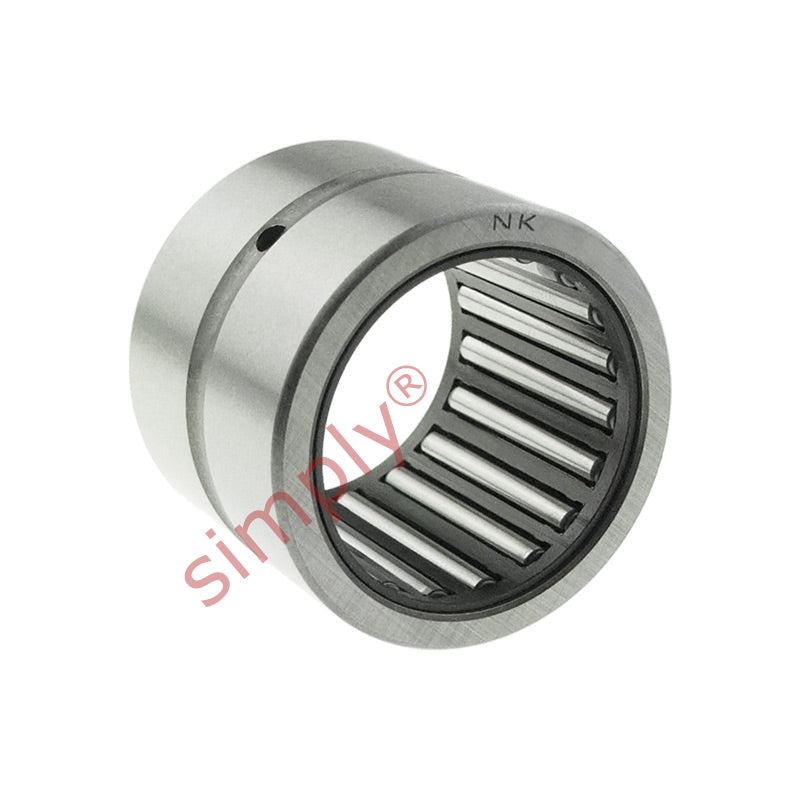

NK70/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 70x85x35mm
NK70/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 70x85x35mm
Regular price
£48.13
ex VAT£57.76inc. VAT
Regular price
Sale price
£48.13
ex VAT£57.76
inc. VAT
In stock
Price Break
10+
£42.83
19+
£40.43
29+
£39.95
39+
£39.46
49+
£38.98
74+
£38.50
99+
£36.09
199+
£35.61
249+
£35.13
499+
£34.65
999+
£33.69
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 85mm
- Width:
- 35mm
Technical
Technical
| Fw | 70mm |
|---|---|
| D | 85mm |
| C | 35mm |
| Dynamic load C | 61600 N |
| Static load Co | 150000 N |
| Fatigue load limit Pu | 19600 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| r1r2 | 0.6mm |
| Da max | 81mm |
| ra max | 0.6mm |
| Seal | CR70x85x8CRW1R |
| Weight | 370 g |
