SKU: NK60/35-EU

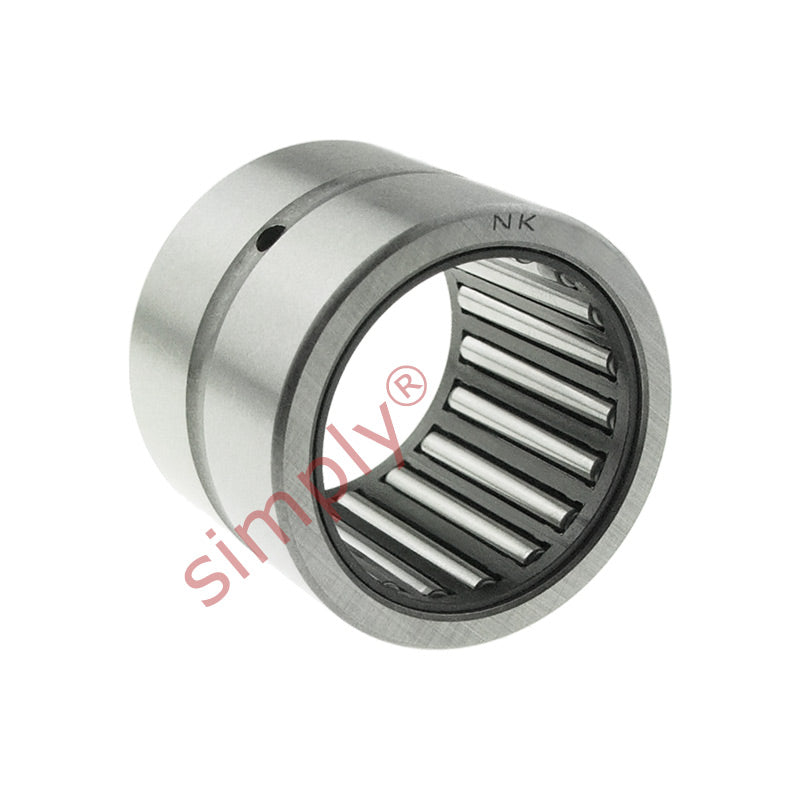

NK60/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 60x72x35mm
NK60/35 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 60x72x35mm
Regular price
£13.56
ex VAT£16.27inc. VAT
Regular price
Sale price
£13.56
ex VAT£16.27
inc. VAT
In stock
Price Break
10+
£12.07
19+
£11.39
29+
£11.25
39+
£11.12
49+
£10.98
74+
£10.85
99+
£10.17
199+
£10.03
249+
£9.90
499+
£9.76
999+
£9.49
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 35mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 35mm |
| Dynamic load C | 55000 N |
| Static load Co | 134000 N |
| Fatigue load limit Pu | 17600 N |
| Speed in grease | 4800 rpm |
| Speed in oil | 6700 rpm |
| r1r2 | 0.6mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 260 g |
