SKU: NK6/10TN-EU

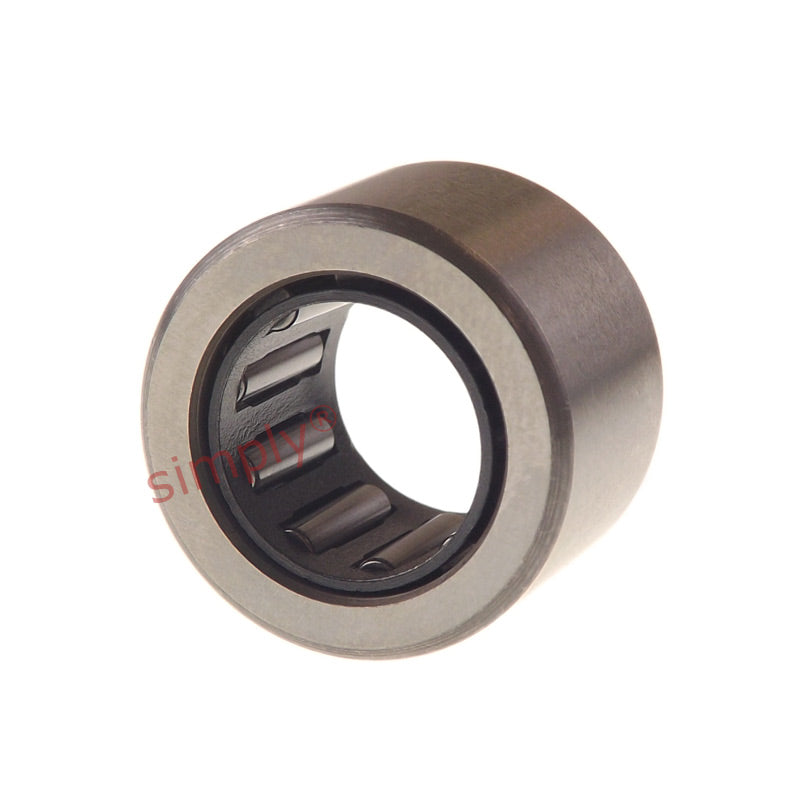

NK6/10TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 6x12x10mm
NK6/10TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 6x12x10mm
Regular price
£6.73
ex VAT£8.08inc. VAT
Regular price
Sale price
£6.73
ex VAT£8.08
inc. VAT
In stock
Price Break
10+
£5.99
19+
£5.65
29+
£5.59
39+
£5.52
49+
£5.45
74+
£5.38
99+
£5.05
199+
£4.98
249+
£4.91
499+
£4.85
999+
£4.71
Couldn't load pickup availability
Description
Description
|
Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 10mm
Technical
Technical
| Fw | 6mm |
|---|---|
| D | 12mm |
| C | 10mm |
| Dynamic load C | 2550 N |
| Static load Co | 2360 N |
| Fatigue load limit Pu | 250 N |
| Speed in grease | 32000 rpm |
| Speed in oil | 45000 rpm |
| r1r2 | 0.15mm |
| Da max | 10.8mm |
| ra max | 0.1mm |
| Seal | G6x12x2 |
| Weight | 4.7 g |
