SKU: NK47/20-MB

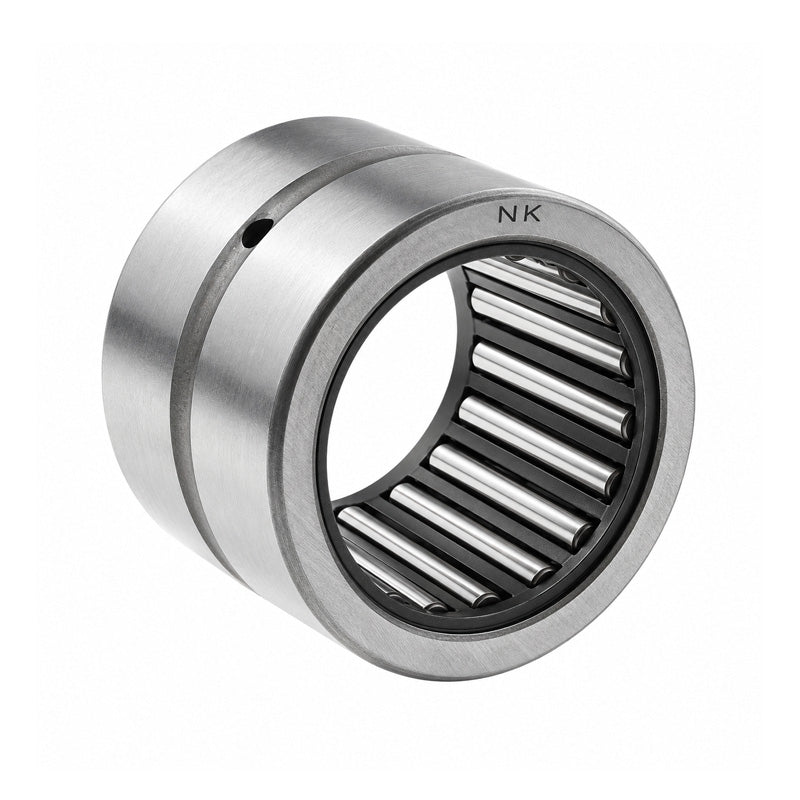

Major Brand NK47/20 Needle Roller Bearing With Flanges without Shaft Sleeve 47x57x20mm
Major Brand NK47/20 Needle Roller Bearing With Flanges without Shaft Sleeve 47x57x20mm
Regular price
£17.41
ex VAT£20.89inc. VAT
Regular price
Sale price
£17.41
ex VAT£20.89
inc. VAT
In stock
Price Break
10+
£15.49
19+
£14.62
29+
£14.45
39+
£14.28
49+
£14.10
74+
£13.93
99+
£13.06
199+
£12.88
249+
£12.71
499+
£12.54
999+
£12.19
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 47mm
- Outside Diameter:
- 57mm
- Width:
- 20mm
Technical
Technical
| Fw | 47mm |
|---|---|
| D | 57mm |
| C | 20mm |
| Dynamic load | 29200 N |
| Static load | 61000 N |
| Fatigue load limit Pu | 7650 N |
| Speed in grease | 6000 rpm |
| Speed in oil | 8500 rpm |
| r1r2 | 0.3mm |
| Da max | 55mm |
| ra max | 0.3mm |
| Weight | 95 g |
