SKU: NK45/30TN-MB

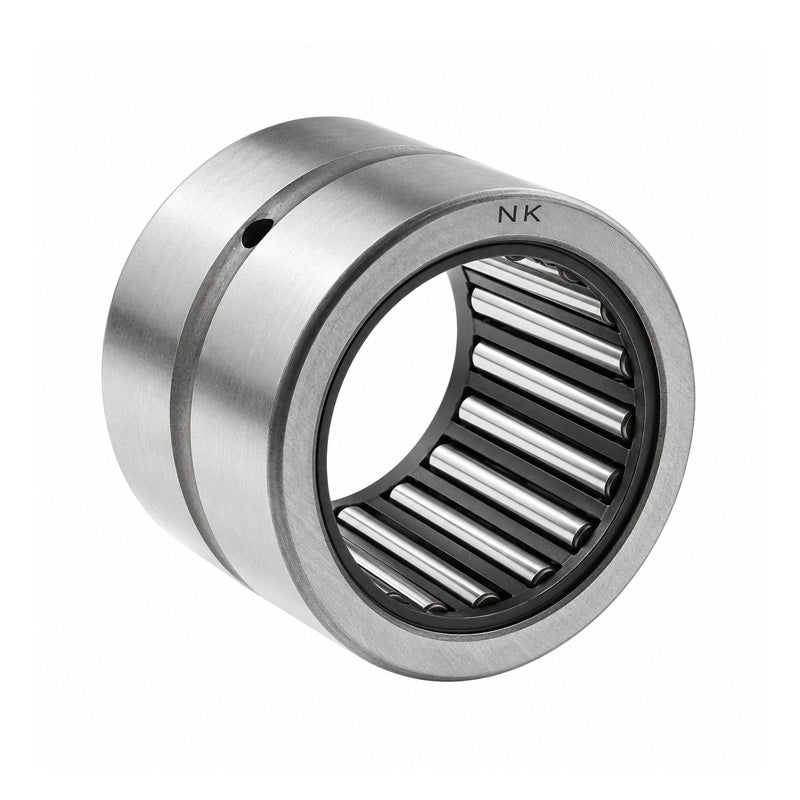

Major Brand NK45/30TN Needle Roller Bearing With Flanges without Shaft Sleeve 45x55x30mm
Major Brand NK45/30TN Needle Roller Bearing With Flanges without Shaft Sleeve 45x55x30mm
Regular price
£28.18
ex VAT£33.82inc. VAT
Regular price
Sale price
£28.18
ex VAT£33.82
inc. VAT
In stock
Price Break
10+
£25.08
19+
£23.67
29+
£23.39
39+
£23.11
49+
£22.83
74+
£22.54
99+
£21.14
199+
£20.85
249+
£20.57
499+
£20.29
999+
£19.73
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 55mm
- Width:
- 30mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 55mm |
| C | 30mm |
| Dynamic load | 40200 N |
| Static load | 93000 N |
| Fatigue load limit Pu | 12000 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| r1r2 | 0.3mm |
| Da max | 53mm |
| ra max | 0.3mm |
| Seal | G/SD45x55x4 |
| Weight | 140 g |
