SKU: NK40/30-MB

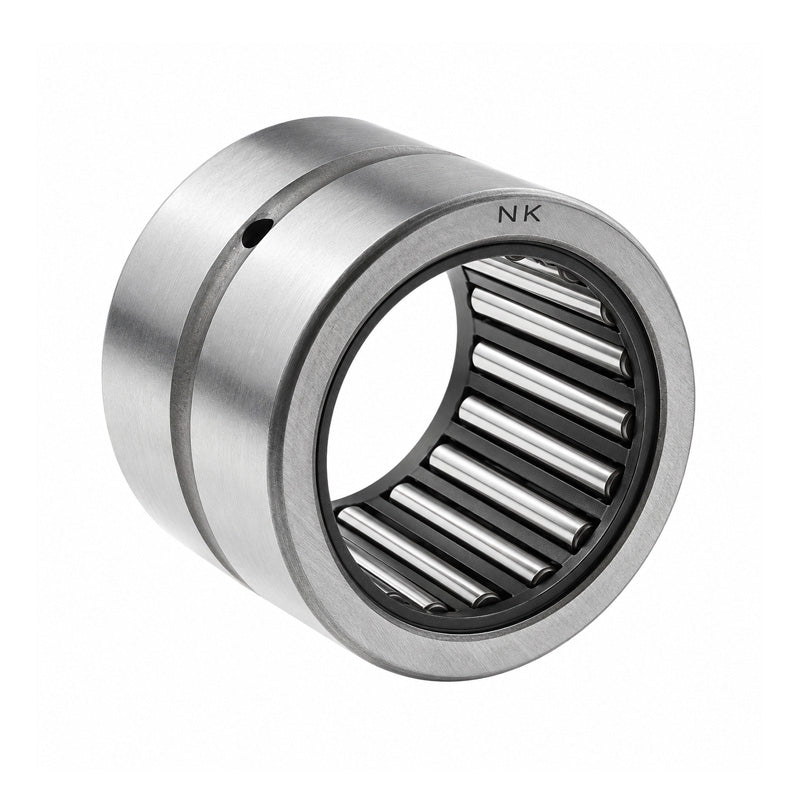

Major Brand NK40/30 Needle Roller Bearing With Flanges without Shaft Sleeve 40x50x30mm
Major Brand NK40/30 Needle Roller Bearing With Flanges without Shaft Sleeve 40x50x30mm
Regular price
£15.77
ex VAT£18.92inc. VAT
Regular price
Sale price
£15.77
ex VAT£18.92
inc. VAT
In stock
Price Break
10+
£14.04
19+
£13.25
29+
£13.09
39+
£12.93
49+
£12.77
74+
£12.62
99+
£11.83
199+
£11.67
249+
£11.51
499+
£11.35
999+
£11.04
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 50mm
- Width:
- 30mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 50mm |
| C | 30mm |
| Dynamic load | 38000 N |
| Static load | 83000 N |
| Fatigue load limit Pu | 10800 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| r1r2 | 0.3mm |
| Da max | 48mm |
| ra max | 0.3mm |
| Seal | G/SD40x50x4 |
| Weight | 130 g |
