SKU: NK37/30-MB

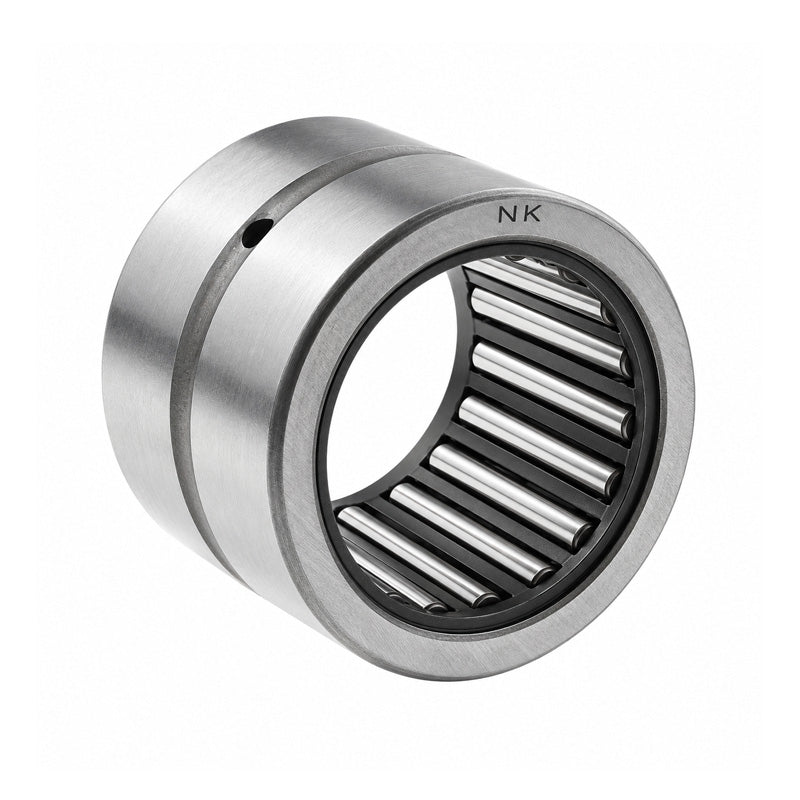

Major Brand NK37/30 Needle Roller Bearing With Flanges without Shaft Sleeve 37x47x30mm
Major Brand NK37/30 Needle Roller Bearing With Flanges without Shaft Sleeve 37x47x30mm
Regular price
£26.24
ex VAT£31.49inc. VAT
Regular price
Sale price
£26.24
ex VAT£31.49
inc. VAT
In stock
Price Break
10+
£23.35
19+
£22.04
29+
£21.78
39+
£21.52
49+
£21.25
74+
£20.99
99+
£19.68
199+
£19.42
249+
£19.15
499+
£18.89
999+
£18.37
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 37mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
Technical
Technical
| Fw | 37mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Dynamic load | 36900 N |
| Static load | 76500 N |
| Fatigue load limit Pu | 10000 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| r1r2 | 0.3mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Seal | G/SD37x47x4 |
| Weight | 110 g |
