SKU: NK35/20-MB

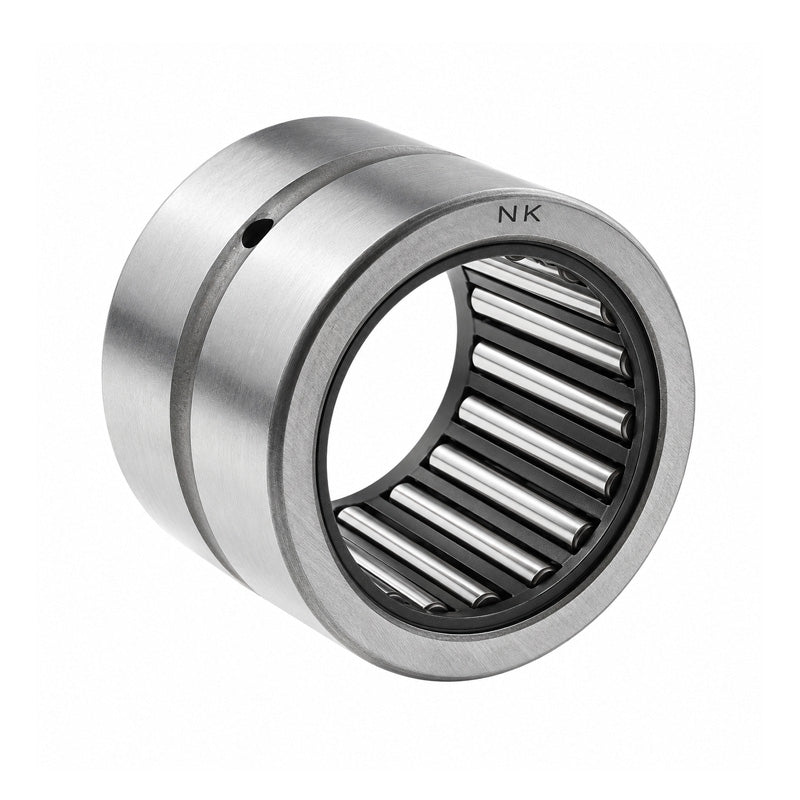

Major Brand NK35/20 Needle Roller Bearing With Flanges without Shaft Sleeve 35x45x20mm
Major Brand NK35/20 Needle Roller Bearing With Flanges without Shaft Sleeve 35x45x20mm
Regular price
£17.69
ex VAT£21.23inc. VAT
Regular price
Sale price
£17.69
ex VAT£21.23
inc. VAT
In stock
Price Break
10+
£15.75
19+
£14.86
29+
£14.69
39+
£14.51
49+
£14.33
74+
£14.15
99+
£13.27
199+
£13.09
249+
£12.92
499+
£12.74
999+
£12.39
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Width:
- 20mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 45mm |
| C | 20mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Fatigue load limit Pu | 5700 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| r1r2 | 0.3mm |
| Da max | 43mm |
| ra max | 0.3mm |
| Seal | G/SD35x45x4 |
| Weight | 74 g |
