SKU: NK30/20TN-MB

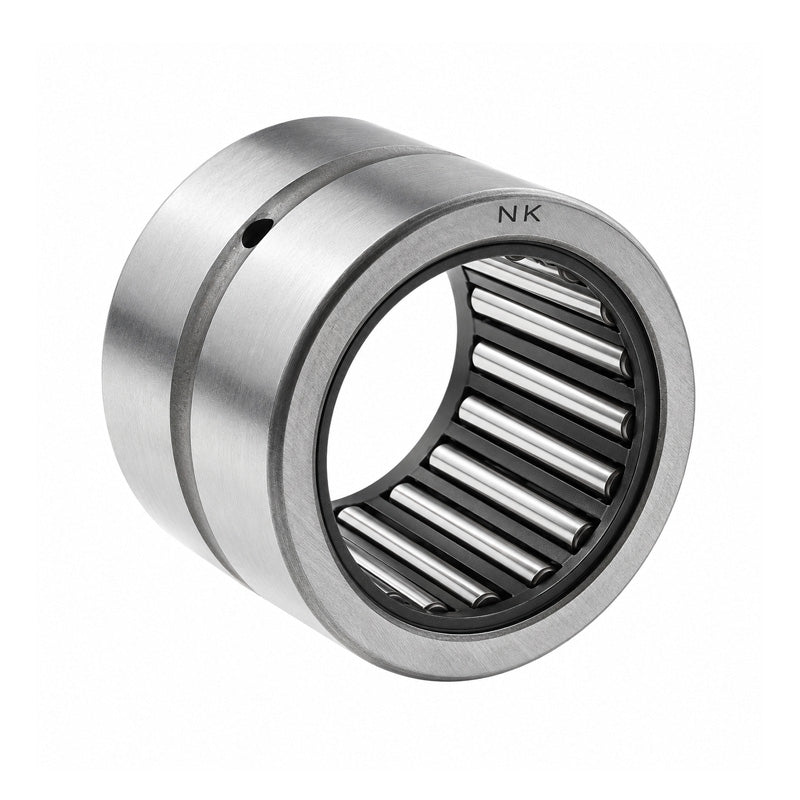

Major Brand NK30/20TN Needle Roller Bearing With Flanges without Shaft Sleeve 30x40x20mm
Major Brand NK30/20TN Needle Roller Bearing With Flanges without Shaft Sleeve 30x40x20mm
Regular price
£16.68
ex VAT£20.02inc. VAT
Regular price
Sale price
£16.68
ex VAT£20.02
inc. VAT
In stock
Price Break
10+
£14.85
19+
£14.01
29+
£13.84
39+
£13.68
49+
£13.51
74+
£13.34
99+
£12.51
199+
£12.34
249+
£12.18
499+
£12.01
999+
£11.68
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 40mm
- Width:
- 20mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 40mm |
| C | 20mm |
| Dynamic load | 22900 N |
| Static load | 38000 N |
| Fatigue load limit Pu | 4900 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| r1r2 | 0.3mm |
| Da max | 38mm |
| ra max | 0.3mm |
| Seal | G/SD30x40x4 |
| Weight | 65 g |
