SKU: NK22/16-MB

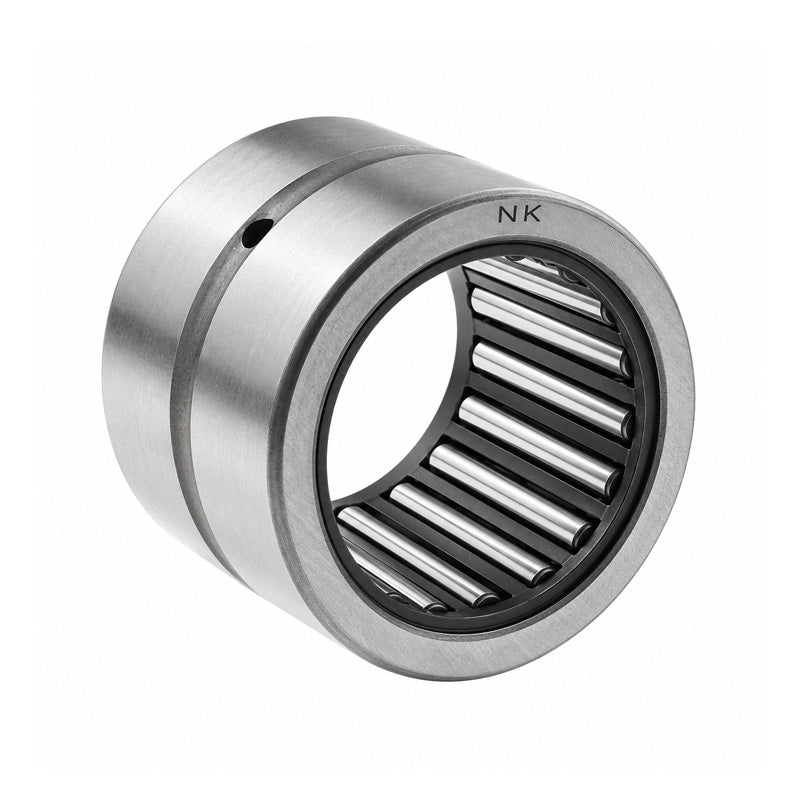

Major Brand NK22/16 Needle Roller Bearing With Flanges without Shaft Sleeve 22x30x16mm
Major Brand NK22/16 Needle Roller Bearing With Flanges without Shaft Sleeve 22x30x16mm
Regular price
£11.39
ex VAT£13.67inc. VAT
Regular price
Sale price
£11.39
ex VAT£13.67
inc. VAT
In stock
Price Break
10+
£10.14
19+
£9.57
29+
£9.45
39+
£9.34
49+
£9.23
74+
£9.11
99+
£8.54
199+
£8.43
249+
£8.31
499+
£8.20
999+
£7.97
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 16mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 16mm |
| Dynamic load | 14200 N |
| Static load | 21600 N |
| Fatigue load limit Pu | 2650 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 30 g |
