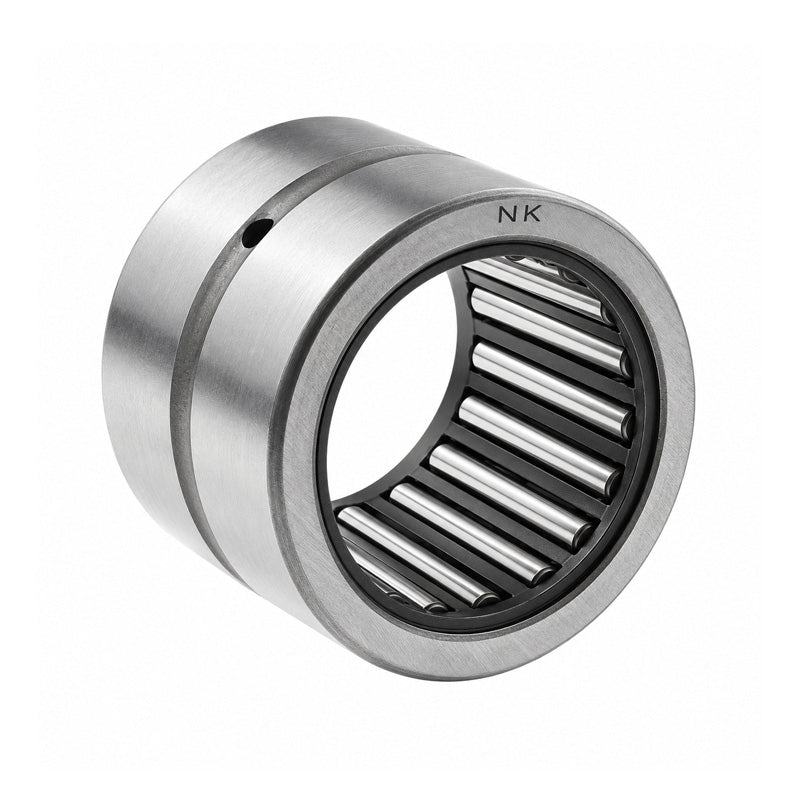

Major Brand NK21/20 Needle Roller Bearing With Flanges without Shaft Sleeve 21x29x20mm
Major Brand NK21/20 Needle Roller Bearing With Flanges without Shaft Sleeve 21x29x20mm
Regular price
£19.81
ex VAT£23.77inc. VAT
Regular price
Sale price
£19.81
ex VAT£23.77
inc. VAT
In stock
Price Break
10+
£17.63
19+
£16.64
29+
£16.44
39+
£16.24
49+
£16.05
74+
£15.85
99+
£14.86
199+
£14.66
249+
£14.46
499+
£14.26
999+
£13.87
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 21mm
- Outside Diameter:
- 29mm
- Width:
- 20mm
Technical
Technical
| Fw | 21mm |
|---|---|
| D | 29mm |
| C | 20mm |
| Dynamic load | 17200 N |
| Static load | 27000 N |
| Fatigue load limit Pu | 3450 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| r1r2 | 0.3mm |
| Da max | 27mm |
| ra max | 0.3mm |
| Seal | G21x29x4 |
| Weight | 35 g |
