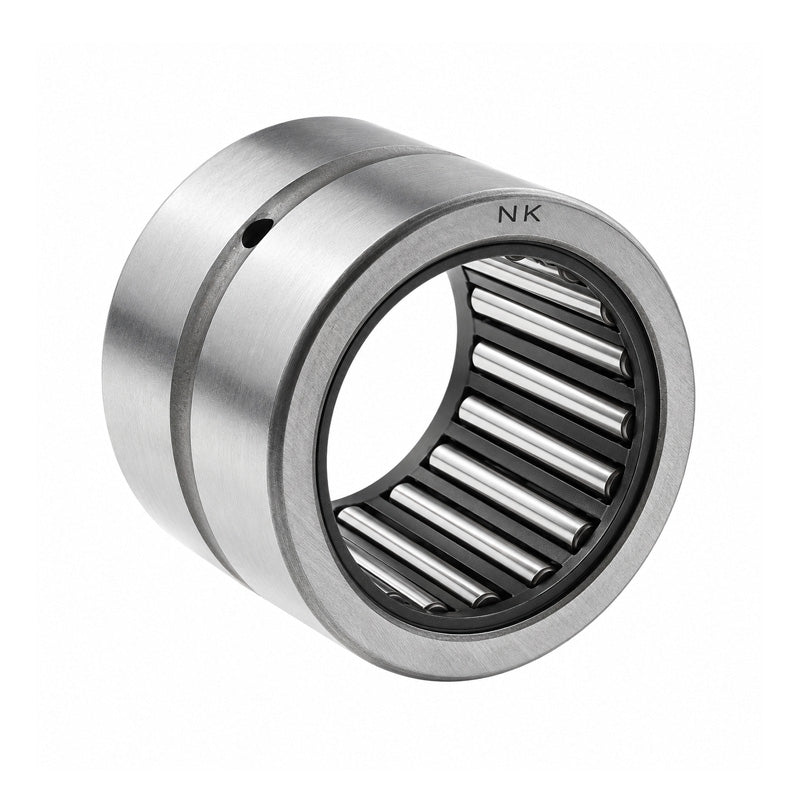

Major Brand NK18/20 Needle Roller Bearing With Flanges without Shaft Sleeve 18x26x20mm
Major Brand NK18/20 Needle Roller Bearing With Flanges without Shaft Sleeve 18x26x20mm
Regular price
£8.78
ex VAT£10.54inc. VAT
Regular price
Sale price
£8.78
ex VAT£10.54
inc. VAT
In stock
Price Break
10+
£7.81
19+
£7.38
29+
£7.29
39+
£7.20
49+
£7.11
74+
£7.02
99+
£6.59
199+
£6.50
249+
£6.41
499+
£6.32
999+
£6.15
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 26mm
- Width:
- 20mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 26mm |
| C | 20mm |
| Dynamic load | 16100 N |
| Static load | 23600 N |
| Fatigue load limit Pu | 3000 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| r1r2 | 0.3mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Seal | G/SD18x26x4 |
| Weight | 31 g |
