SKU: NK14/20-MB

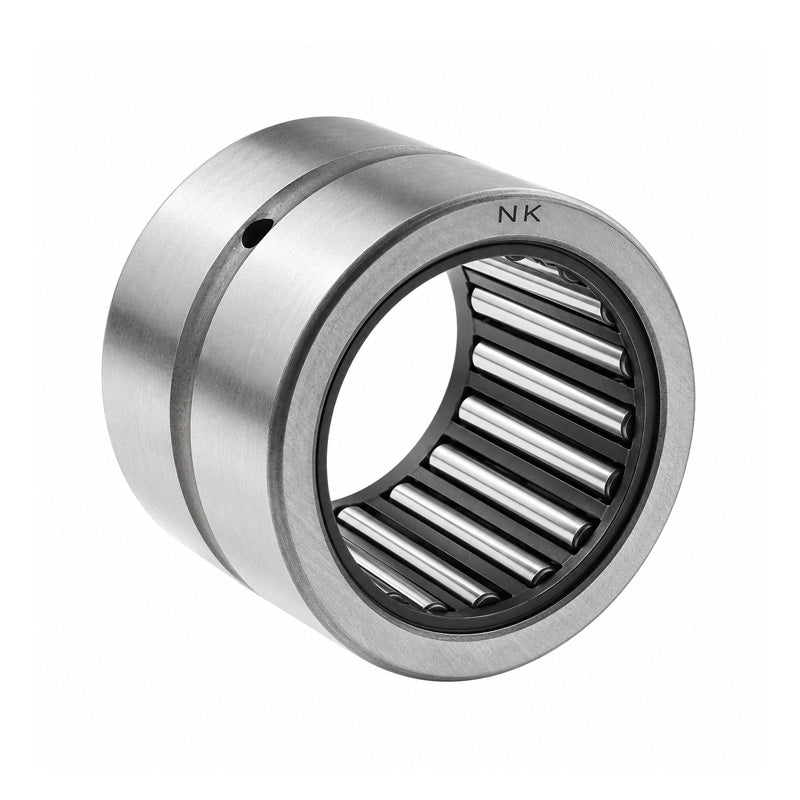

Major Brand NK14/20 Needle Roller Bearing With Flanges without Shaft Sleeve 14x22x20mm
Major Brand NK14/20 Needle Roller Bearing With Flanges without Shaft Sleeve 14x22x20mm
Regular price
£11.33
ex VAT£13.60inc. VAT
Regular price
Sale price
£11.33
ex VAT£13.60
inc. VAT
In stock
Price Break
10+
£10.08
19+
£9.52
29+
£9.40
39+
£9.29
49+
£9.18
74+
£9.06
99+
£8.50
199+
£8.38
249+
£8.27
499+
£8.16
999+
£7.93
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 22mm
- Width:
- 20mm
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 22mm |
| C | 20mm |
| Dynamic load | 12800 N |
| Static load | 16600 N |
| Fatigue load limit Pu | 2080 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| r1r2 | 0.3mm |
| Da max | 20mm |
| ra max | 0.3mm |
| Seal | G/SD14x22x3 |
| Weight | 26 g |
