SKU: NK14/16-MB

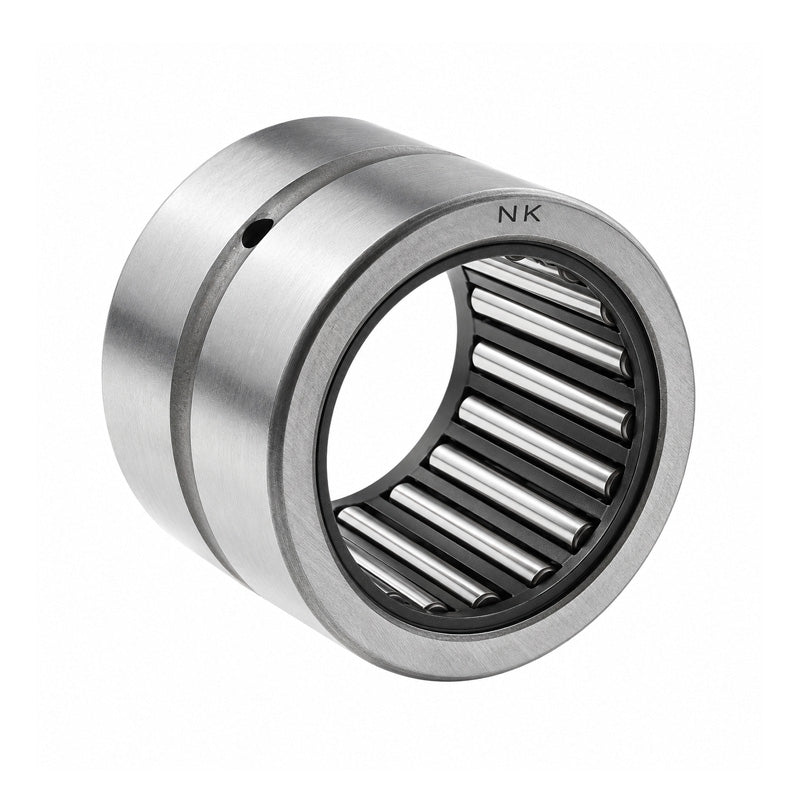

Major Brand NK14/16 Needle Roller Bearing With Flanges without Shaft Sleeve 14x22x16mm
Major Brand NK14/16 Needle Roller Bearing With Flanges without Shaft Sleeve 14x22x16mm
Regular price
£8.60
ex VAT£10.32inc. VAT
Regular price
Sale price
£8.60
ex VAT£10.32
inc. VAT
In stock
Price Break
10+
£7.65
19+
£7.22
29+
£7.14
39+
£7.05
49+
£6.97
74+
£6.88
99+
£6.45
199+
£6.36
249+
£6.28
499+
£6.19
999+
£6.02
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 22mm |
| C | 16mm |
| Dynamic load | 10200 N |
| Static load | 12500 N |
| Fatigue load limit Pu | 1530 N |
| Speed in grease | 17000 rpm |
| r1r2 | 0.3mm |
| Da max | 20mm |
| ra max | 0.3mm |
| Seal | G/SD14x22x3 |
| Weight | 21 g |
