SKU: NJ409-EU

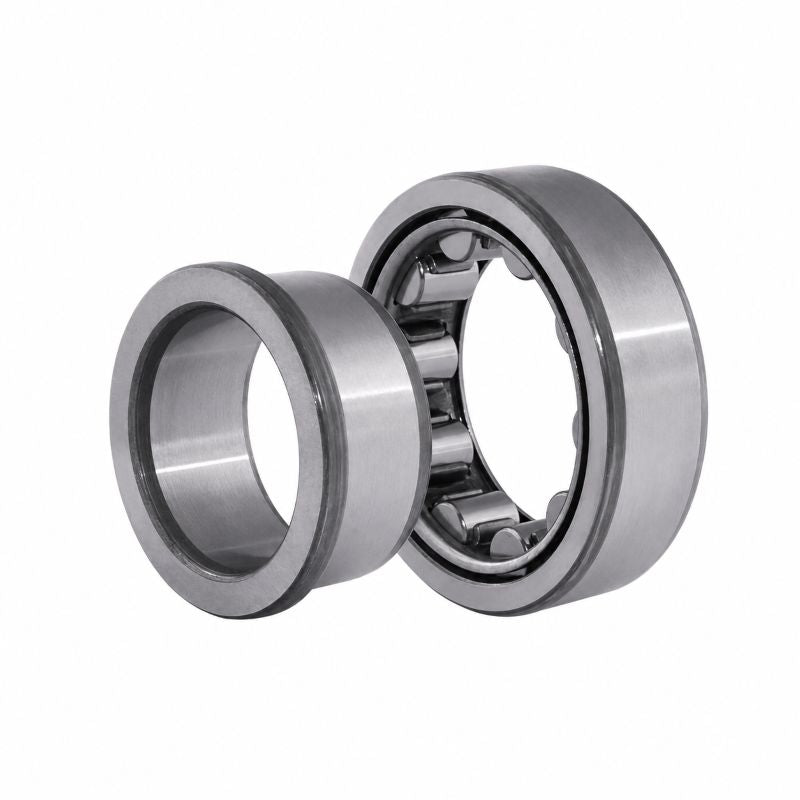

NJ409 Budget Single Row Cylindrical Roller Bearing 45x120x29mm
NJ409 Budget Single Row Cylindrical Roller Bearing 45x120x29mm
Regular price
£101.37
ex VAT£121.64inc. VAT
Regular price
Sale price
£101.37
ex VAT£121.64
inc. VAT
In stock
Price Break
10+
£90.22
19+
£85.15
29+
£84.14
39+
£83.12
49+
£82.11
74+
£81.10
99+
£76.03
199+
£75.01
249+
£74.00
499+
£72.99
999+
£70.96
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 106 kN |
| Static load Co | 102 kN |
| Fatigue load limit Pu | 13.4 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 7500 rpm |
| Weight | 1.67 kg |
| d1 | 71.8mm |
| D1 | 92.2mm |
| F, E | 64.5mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 2.5mm |
| da min | 58mm |
| da max | 62mm |
| db min | 74mm |
| Da max | 107mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ409 |
| Angle ring weight | 0.18kg |
| B1 | 8mm |
| B2 | 13.5mm |
