SKU: NJ408-EU

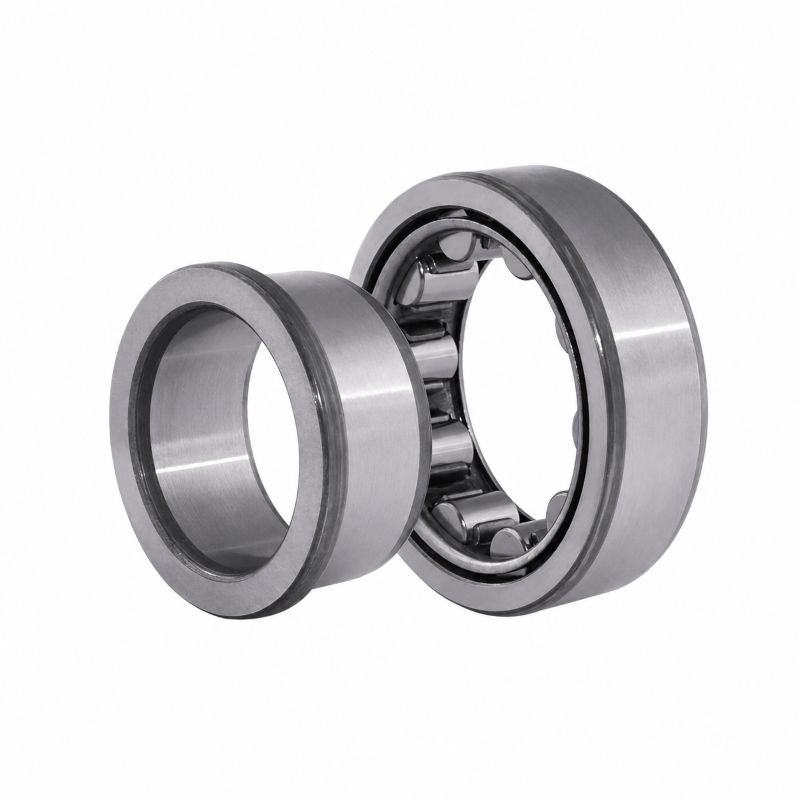

NJ408 Budget Single Row Cylindrical Roller Bearing 40x110x27mm
NJ408 Budget Single Row Cylindrical Roller Bearing 40x110x27mm
Regular price
£98.90
ex VAT£118.68inc. VAT
Regular price
Sale price
£98.90
ex VAT£118.68
inc. VAT
In stock
Price Break
10+
£88.02
19+
£83.07
29+
£82.08
39+
£81.09
49+
£80.11
74+
£79.12
99+
£74.17
199+
£73.18
249+
£72.19
499+
£71.21
999+
£69.23
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 96.8 kN |
| Static load Co | 90 kN |
| Fatigue load limit Pu | 11.6 kN |
| Reference speed | 7000 rpm |
| Limiting speed | 8500 rpm |
| Weight | 1.3 kg |
| d1 | 64.8mm |
| D1 | 84.2mm |
| F, E | 58mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 2.5mm |
| da min | 53mm |
| da max | 56mm |
| db min | 67mm |
| Da max | 97mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
