SKU: NJ407-EU

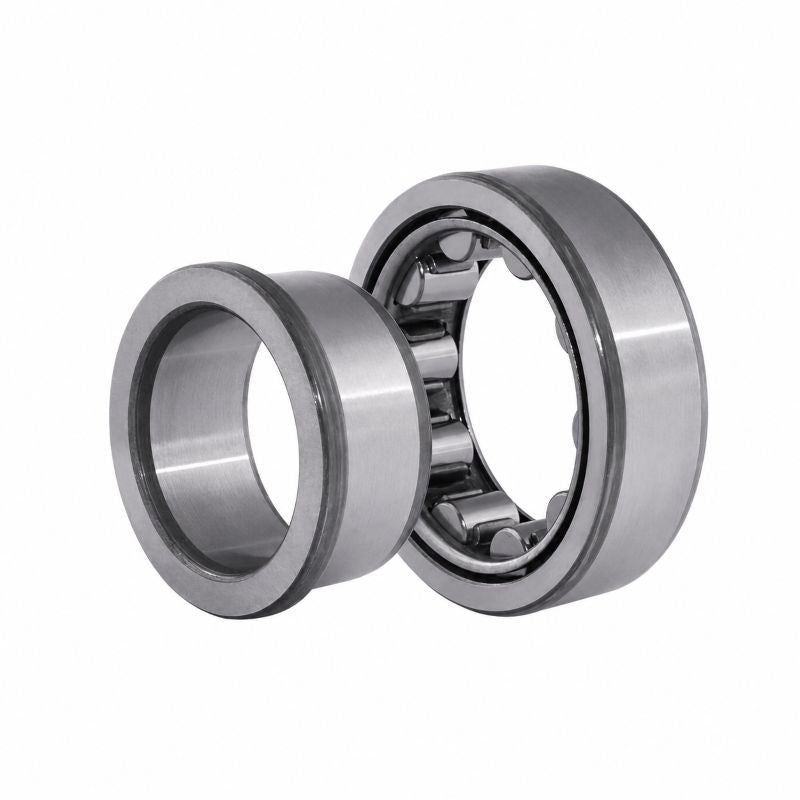

NJ407 Budget Single Row Cylindrical Roller Bearing 35x100x25mm
NJ407 Budget Single Row Cylindrical Roller Bearing 35x100x25mm
Regular price
£34.51
ex VAT£41.41inc. VAT
Regular price
Sale price
£34.51
ex VAT£41.41
inc. VAT
In stock
Price Break
10+
£30.71
19+
£28.99
29+
£28.64
39+
£28.30
49+
£27.95
74+
£27.61
99+
£25.88
199+
£25.54
249+
£25.19
499+
£24.85
999+
£24.16
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 76.5 kN |
| Static load Co | 69.5 kN |
| Fatigue load limit Pu | 9 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 1.05 kg |
| d1 | 59mm |
| D1 | 76.1mm |
| F, E | 53mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.7mm |
| da min | 46mm |
| da max | 50mm |
| db min | 61mm |
| Da max | 89mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
