SKU: NJ316-EU

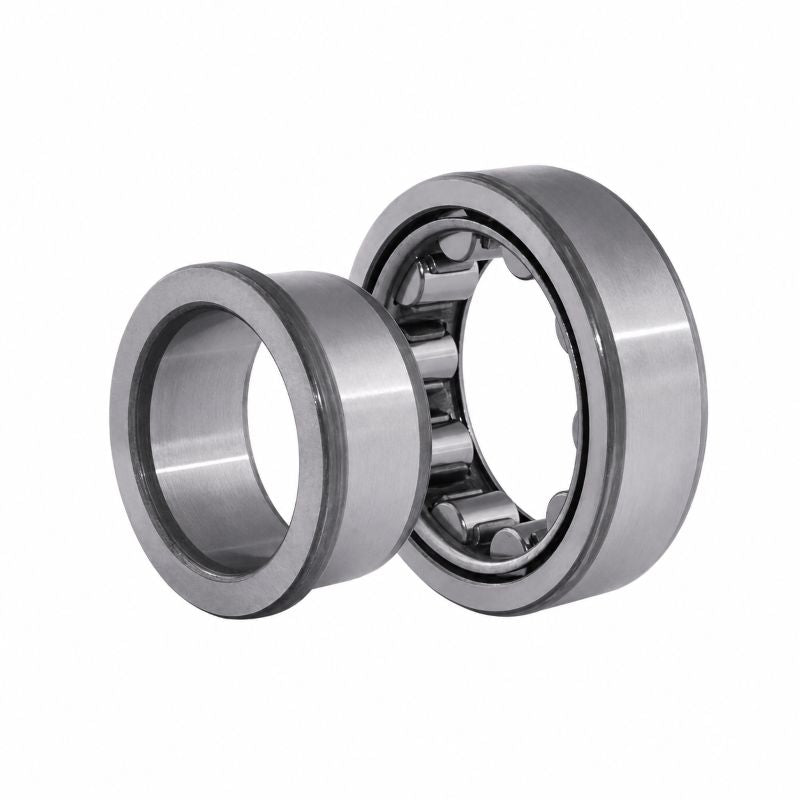

NJ316 Budget Single Row Cylindrical Roller Bearing 80x170x39mm
NJ316 Budget Single Row Cylindrical Roller Bearing 80x170x39mm
Regular price
£143.15
ex VAT£171.78inc. VAT
Regular price
Sale price
£143.15
ex VAT£171.78
inc. VAT
In stock
Price Break
10+
£127.40
19+
£120.25
29+
£118.81
39+
£117.38
49+
£115.95
74+
£114.52
99+
£107.36
199+
£105.93
249+
£104.50
499+
£103.07
999+
£100.20
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load C | 300 kN |
| Static load Co | 290 kN |
| Fatigue load limit Pu | 36 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 5000 rpm |
| Weight | 4 kg |
| Cage options | J.M.ML |
| d1 | 110mm |
| D1 | 144mm |
| F, E | 101mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.1mm |
| da min | 92mm |
| da max | 98mm |
| db min | 113mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ316EC |
| Angle ring weight | 0.44kg |
| B1 | 11mm |
| B2 | 17mm |
