SKU: NJ2310-CDX

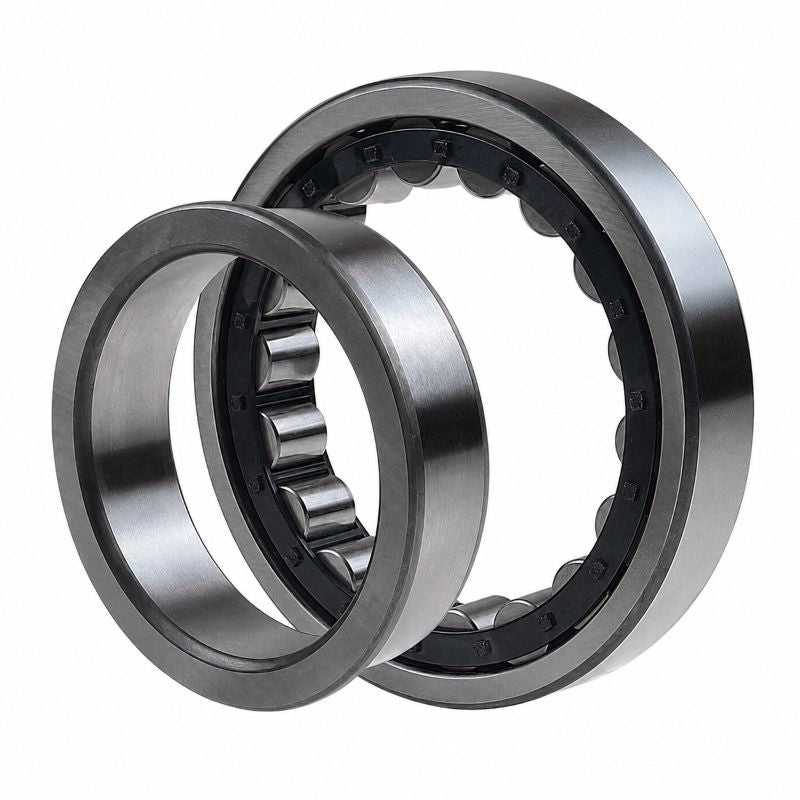

Codex NJ2310 Single Row Cylindrical Roller Bearing 50x110x40mm
Codex NJ2310 Single Row Cylindrical Roller Bearing 50x110x40mm
Regular price
£88.14
ex VAT£105.77inc. VAT
Regular price
Sale price
£88.14
ex VAT£105.77
inc. VAT
In stock
Price Break
10+
£78.44
19+
£74.03
29+
£73.15
39+
£72.27
49+
£71.39
74+
£70.51
99+
£66.10
199+
£65.22
249+
£64.34
499+
£63.46
999+
£61.69
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 40mm |
| Dynamic load C | 186 kN |
| Static load Co | 186 kN |
| Fatigue load limit Pu | 24.5 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 8000 rpm |
| Weight | 1.77 kg |
| Cage options | ML |
| d1 | 71.2mm |
| D1 | 92.1mm |
| F, E | 65mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 3.4mm |
| da min | 61mm |
| da max | 63mm |
| db min | 73mm |
| Da max | 99mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
