SKU: NJ2309-CDX

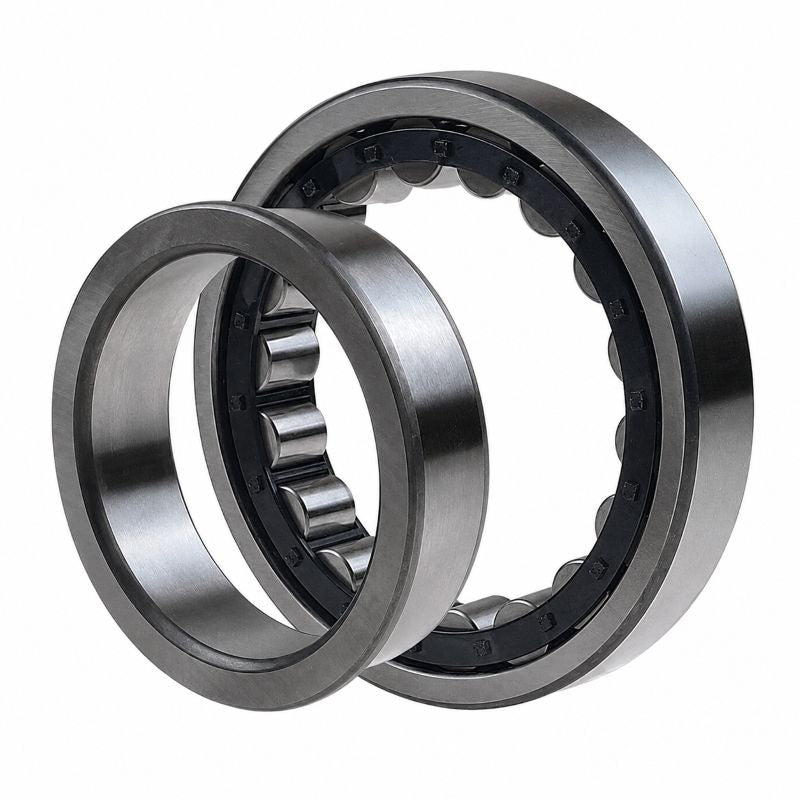

Codex NJ2309 Single Row Cylindrical Roller Bearing 45x100x36mm
Codex NJ2309 Single Row Cylindrical Roller Bearing 45x100x36mm
Regular price
£72.23
ex VAT£86.68inc. VAT
Regular price
Sale price
£72.23
ex VAT£86.68
inc. VAT
In stock
Price Break
10+
£64.29
19+
£60.67
29+
£59.95
39+
£59.23
49+
£58.51
74+
£57.79
99+
£54.17
199+
£53.45
249+
£52.73
499+
£52.01
999+
£50.56
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 36mm |
| Dynamic load C | 160 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 20 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 1.33 kg |
| Cage options | ML |
| d1 | 64.4mm |
| D1 | 83.8mm |
| F, E | 58.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 3.2mm |
| da min | 54mm |
| da max | 56mm |
| db min | 67mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.25 |
