SKU: NJ2307-CDX

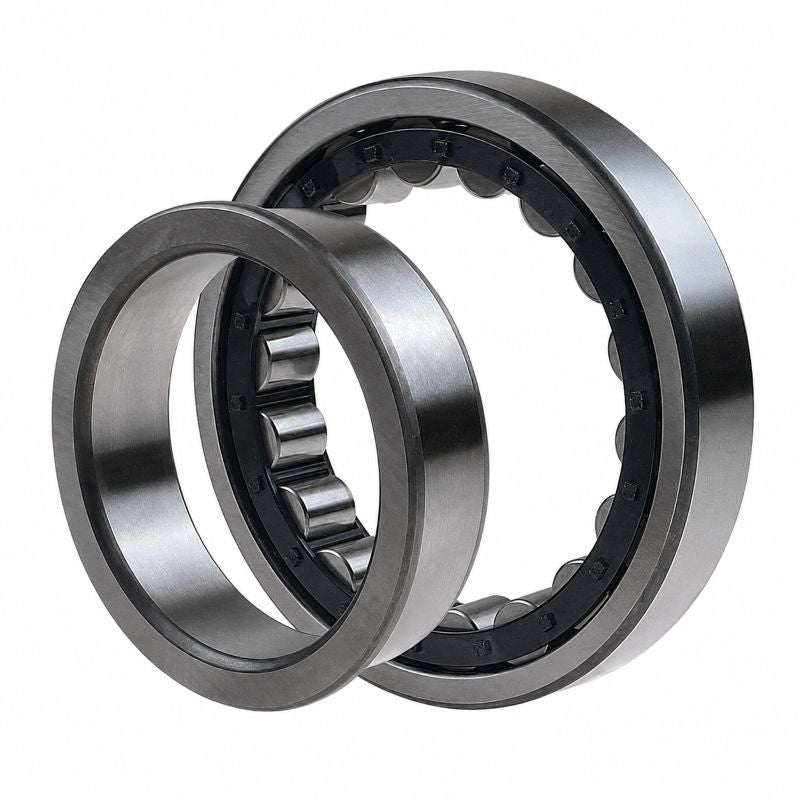

Codex NJ2307 Single Row Cylindrical Roller Bearing 35x80x31mm
Codex NJ2307 Single Row Cylindrical Roller Bearing 35x80x31mm
Regular price
£48.80
ex VAT£58.56inc. VAT
Regular price
Sale price
£48.80
ex VAT£58.56
inc. VAT
In stock
Price Break
10+
£43.43
19+
£40.99
29+
£40.50
39+
£40.01
49+
£39.52
74+
£39.04
99+
£36.60
199+
£36.11
249+
£35.62
499+
£35.13
999+
£34.16
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 31mm |
| Dynamic load C | 106 kN |
| Static load Co | 98 kN |
| Fatigue load limit Pu | 12.7 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.73 kg |
| d1 | 51mm |
| D1 | 66.3mm |
| F, E | 46.2mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.1mm |
| s | 2.7mm |
| da min | 44mm |
| da max | 44mm |
| db min | 53mm |
| Da max | 71mm |
| ra max | 1.5mm |
| rb max | 1mm |
| kr | 0.25 |
