SKU: NJ2306-EU

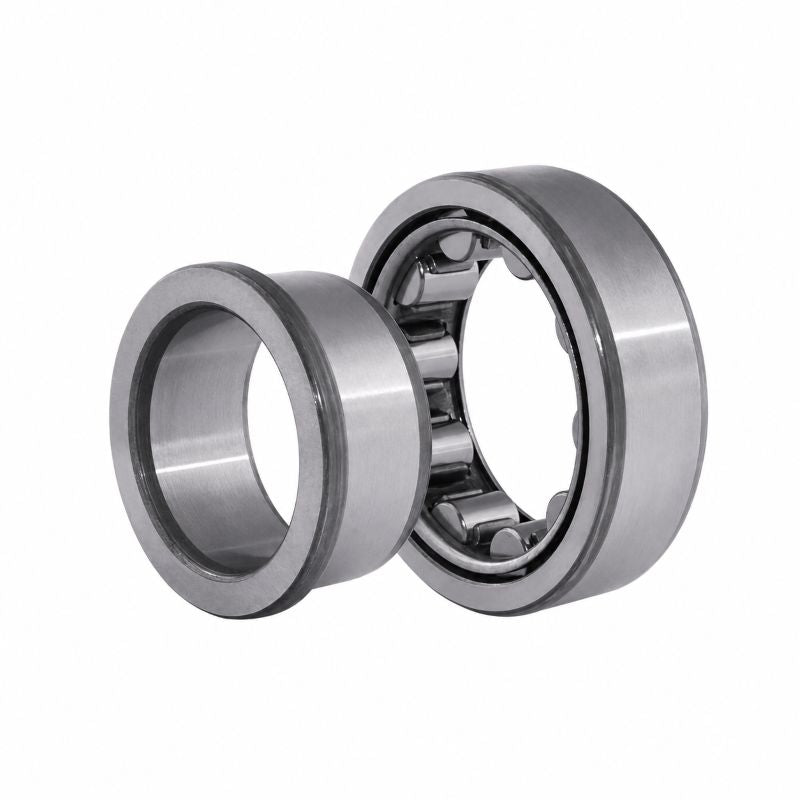

NJ2306 Budget Single Row Cylindrical Roller Bearing 30x72x27mm
NJ2306 Budget Single Row Cylindrical Roller Bearing 30x72x27mm
Regular price
£19.27
ex VAT£23.12inc. VAT
Regular price
Sale price
£19.27
ex VAT£23.12
inc. VAT
In stock
Price Break
10+
£17.15
19+
£16.19
29+
£15.99
39+
£15.80
49+
£15.61
74+
£15.42
99+
£14.45
199+
£14.26
249+
£14.07
499+
£13.87
999+
£13.49
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 27mm |
| Dynamic load C | 83 kN |
| Static load Co | 75 kN |
| Fatigue load limit Pu | 9.65 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.54 kg |
| Cage options | ML |
| d1 | 45mm |
| D1 | 58.9mm |
| F, E | 40.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| s | 2.4mm |
| da min | 37mm |
| da max | 39mm |
| db min | 47mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.25 |
