SKU: NJ2304-EU

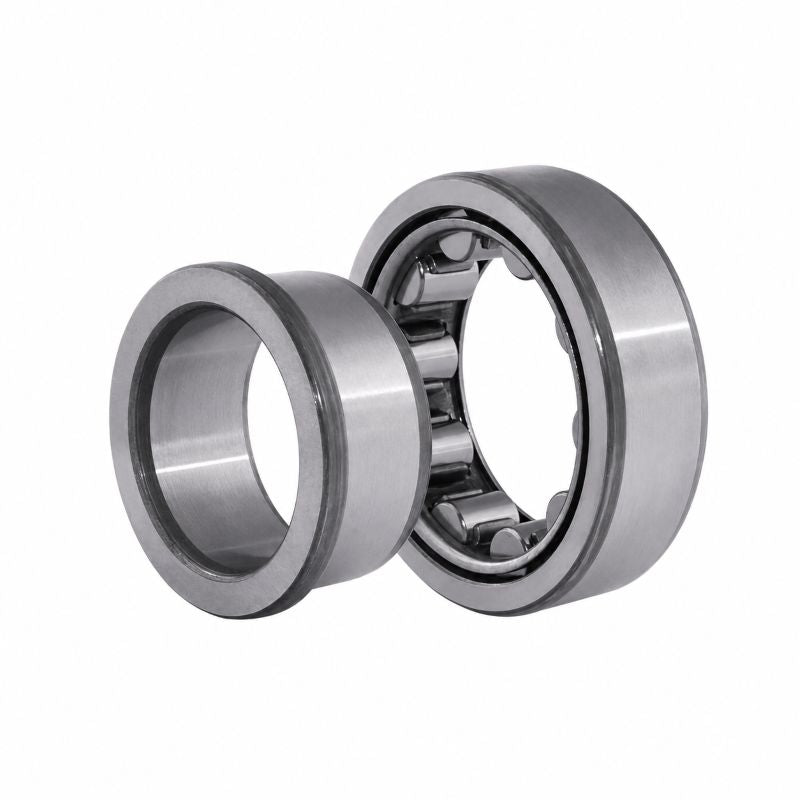

NJ2304 Budget Single Row Cylindrical Roller Bearing 20x52x21mm
NJ2304 Budget Single Row Cylindrical Roller Bearing 20x52x21mm
Regular price
£16.05
ex VAT£19.26inc. VAT
Regular price
Sale price
£16.05
ex VAT£19.26
inc. VAT
In stock
Price Break
10+
£14.28
19+
£13.48
29+
£13.32
39+
£13.16
49+
£13.00
74+
£12.84
99+
£12.04
199+
£11.88
249+
£11.72
499+
£11.56
999+
£11.24
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 21mm |
| Dynamic load C | 47.5 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 4.8 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.22 kg |
| d1 | 31.2mm |
| D1 | 42.4mm |
| F, E | 27.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| s | 1.9mm |
| da min | 26mm |
| da max | 26mm |
| db min | 33mm |
| Da max | 45mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.29 |
