SKU: NJ2215-CDX

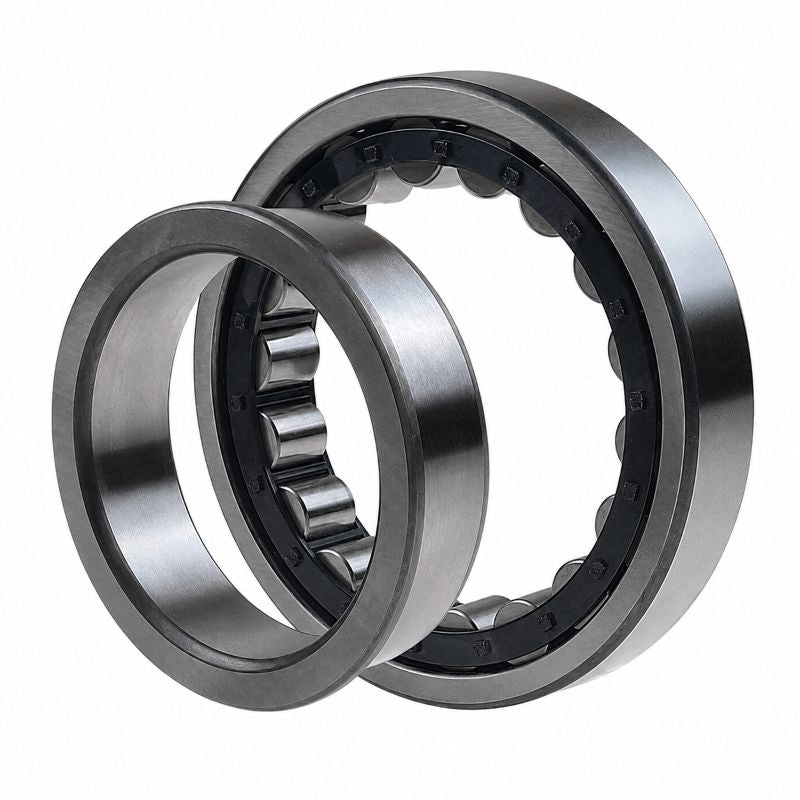

Codex NJ2215 Single Row Cylindrical Roller Bearing 75x130x31mm
Codex NJ2215 Single Row Cylindrical Roller Bearing 75x130x31mm
Regular price
£115.05
ex VAT£138.06inc. VAT
Regular price
Sale price
£115.05
ex VAT£138.06
inc. VAT
In stock
Price Break
10+
£102.40
19+
£96.64
29+
£95.49
39+
£94.34
49+
£93.19
74+
£92.04
99+
£86.29
199+
£85.14
249+
£83.99
499+
£82.84
999+
£80.54
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load C | 186 kN |
| Static load Co | 208 kN |
| Fatigue load limit Pu | 27 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.6 kg |
| Cage options | J.ML |
| d1 | 94.3mm |
| D1 | 114mm |
| F, E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.7mm |
| da min | 84mm |
| da max | 86mm |
| db min | 97mm |
| Da max | 121mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.2 |
