SKU: NJ2213-CDX

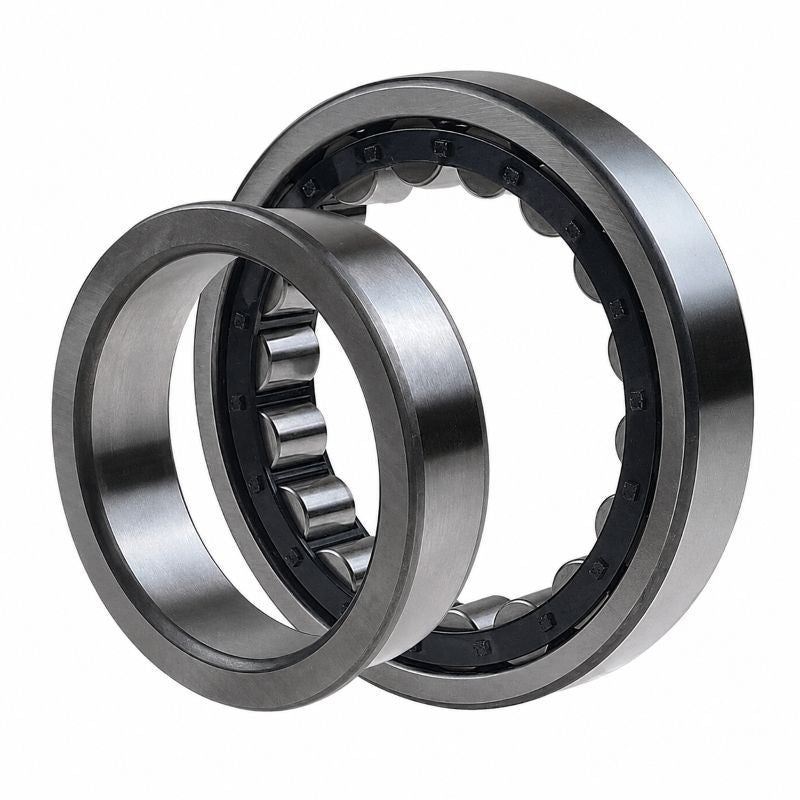

Codex NJ2213 Single Row Cylindrical Roller Bearing 65x120x31mm
Codex NJ2213 Single Row Cylindrical Roller Bearing 65x120x31mm
Regular price
£87.66
ex VAT£105.19inc. VAT
Regular price
Sale price
£87.66
ex VAT£105.19
inc. VAT
In stock
Price Break
10+
£78.01
19+
£73.63
29+
£72.75
39+
£71.88
49+
£71.00
74+
£70.12
99+
£65.74
199+
£64.87
249+
£63.99
499+
£63.11
999+
£61.36
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 31mm |
| Dynamic load C | 170 kN |
| Static load Co | 180 kN |
| Fatigue load limit Pu | 24 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.45 kg |
| Cage options | J |
| d1 | 84.4mm |
| D1 | 104mm |
| F, E | 78.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.9mm |
| da min | 74mm |
| da max | 76mm |
| db min | 87mm |
| Da max | 111mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.2 |
| Angle ring | HJ2213EC |
| Angle ring weight | 0.13kg |
| B1 | 6mm |
| B2 | 10.5mm |
