SKU: NJ2210-EU

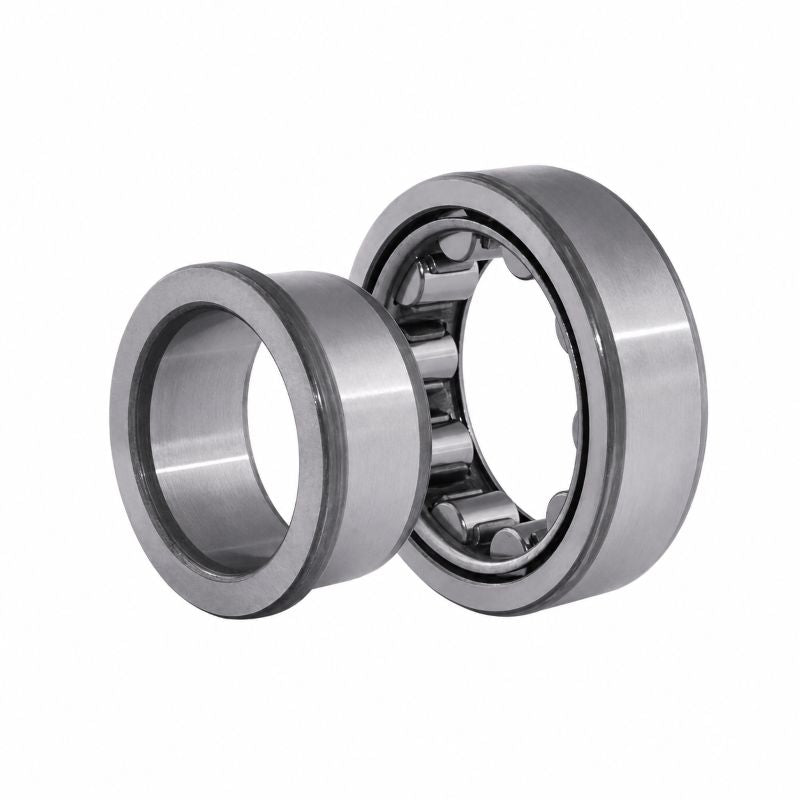

NJ2210 Budget Single Row Cylindrical Roller Bearing 50x90x23mm
NJ2210 Budget Single Row Cylindrical Roller Bearing 50x90x23mm
Regular price
£43.62
ex VAT£52.34inc. VAT
Regular price
Sale price
£43.62
ex VAT£52.34
inc. VAT
In stock
Price Break
10+
£38.82
19+
£36.64
29+
£36.21
39+
£35.77
49+
£35.33
74+
£34.90
99+
£32.72
199+
£32.28
249+
£31.84
499+
£31.41
999+
£30.54
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 90 kN |
| Static load Co | 88 kN |
| Fatigue load limit Pu | 11.4 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.57 kg |
| Cage options | J.M.ML |
| d1 | 64mm |
| D1 | 78mm |
| F, E | 59.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| s | 1.5mm |
| da min | 57mm |
| da max | 57mm |
| db min | 66mm |
| Da max | 83mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
