SKU: NJ2209-EU

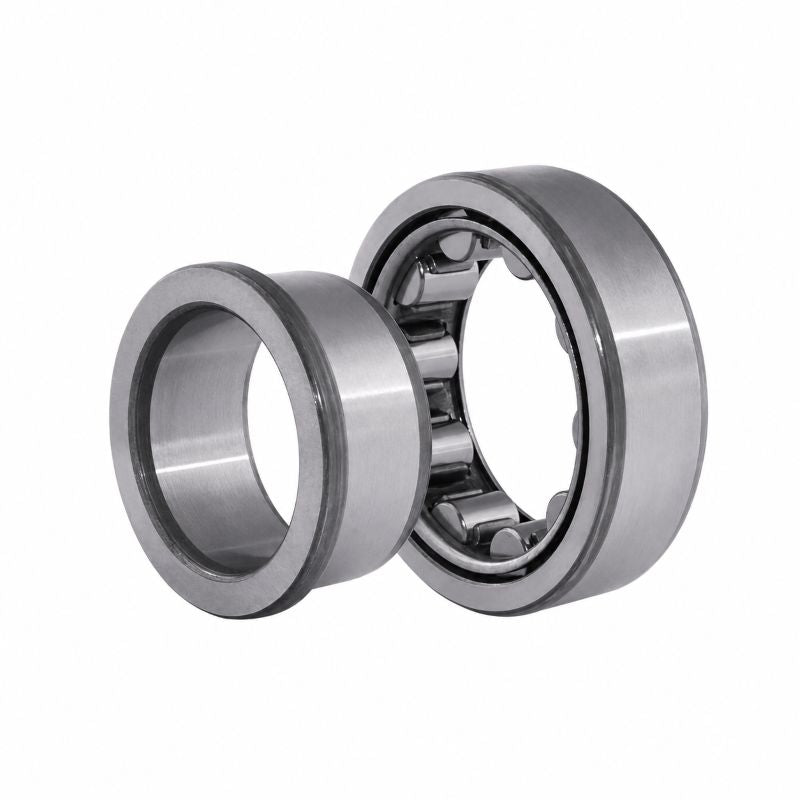

NJ2209 Budget Single Row Cylindrical Roller Bearing 45x85x23mm
NJ2209 Budget Single Row Cylindrical Roller Bearing 45x85x23mm
Regular price
£40.41
ex VAT£48.49inc. VAT
Regular price
Sale price
£40.41
ex VAT£48.49
inc. VAT
In stock
Price Break
10+
£35.96
19+
£33.94
29+
£33.54
39+
£33.14
49+
£32.73
74+
£32.33
99+
£30.31
199+
£29.90
249+
£29.50
499+
£29.09
999+
£28.29
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 23mm |
| Dynamic load C | 85 kN |
| Static load Co | 81.5 kN |
| Fatigue load limit Pu | 10.6 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.54 kg |
| Cage options | J |
| d1 | 59mm |
| D1 | 73mm |
| F, E | 54.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| s | 1.7mm |
| da min | 52mm |
| da max | 53mm |
| db min | 56mm |
| Da max | 78mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
