SKU: NJ2209-CDX

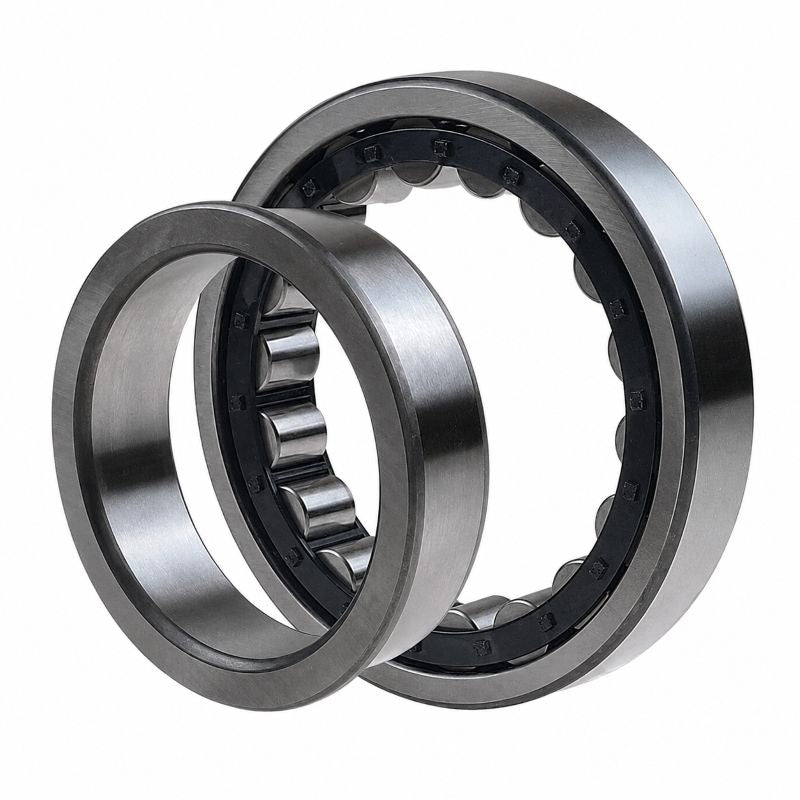

Codex NJ2209 Single Row Cylindrical Roller Bearing 45x85x23mm
Codex NJ2209 Single Row Cylindrical Roller Bearing 45x85x23mm
Regular price
£46.30
ex VAT£55.56inc. VAT
Regular price
Sale price
£46.30
ex VAT£55.56
inc. VAT
In stock
Price Break
10+
£41.20
19+
£38.89
29+
£38.43
39+
£37.96
49+
£37.50
74+
£37.04
99+
£34.72
199+
£34.26
249+
£33.80
499+
£33.33
999+
£32.41
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 23mm |
| Dynamic load C | 85 kN |
| Static load Co | 81.5 kN |
| Fatigue load limit Pu | 10.6 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.54 kg |
| Cage options | J |
| d1 | 59mm |
| D1 | 73mm |
| F, E | 54.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| s | 1.7mm |
| da min | 52mm |
| da max | 53mm |
| db min | 56mm |
| Da max | 78mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
