SKU: NJ2203-EU

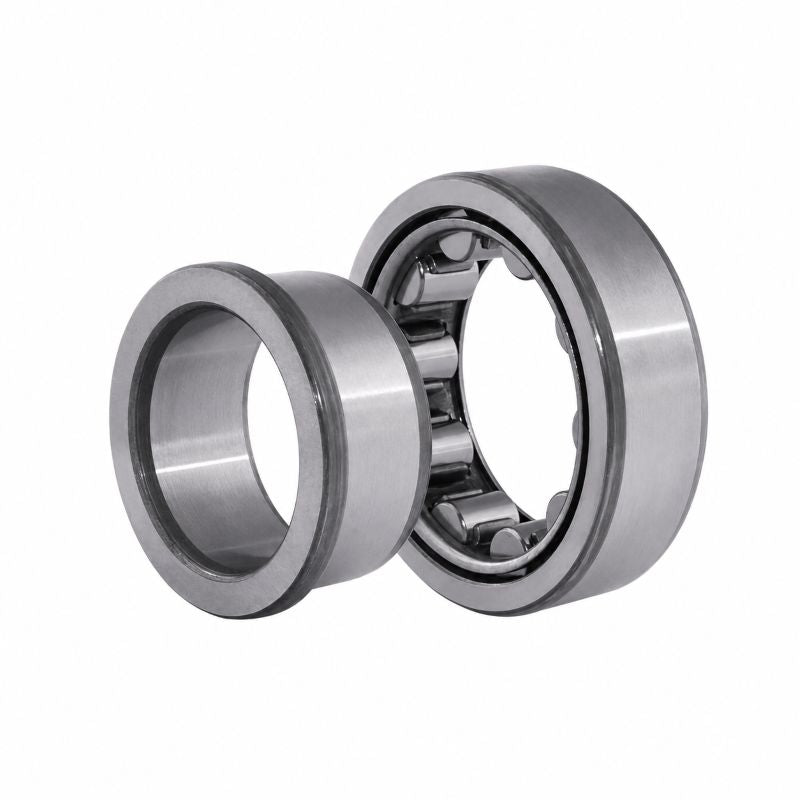

NJ2203 Budget Single Row Cylindrical Roller Bearing 17x40x16mm
NJ2203 Budget Single Row Cylindrical Roller Bearing 17x40x16mm
Regular price
£22.00
ex VAT£26.40inc. VAT
Regular price
Sale price
£22.00
ex VAT£26.40
inc. VAT
In stock
Price Break
10+
£19.58
19+
£18.48
29+
£18.26
39+
£18.04
49+
£17.82
74+
£17.60
99+
£16.50
199+
£16.28
249+
£16.06
499+
£15.84
999+
£15.40
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 16mm |
| Dynamic load C | 23.8 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 2.65 kN |
| Reference speed | 19000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.093 kg |
| d1 | 25mm |
| D1 | 32.4mm |
| F, E | 22.1mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| s | 1.5mm |
| da min | 21mm |
| da max | 21mm |
| db min | 27mm |
| Da max | 35.8mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| kr | 0.2 |
