SKU: NJ214-CDX

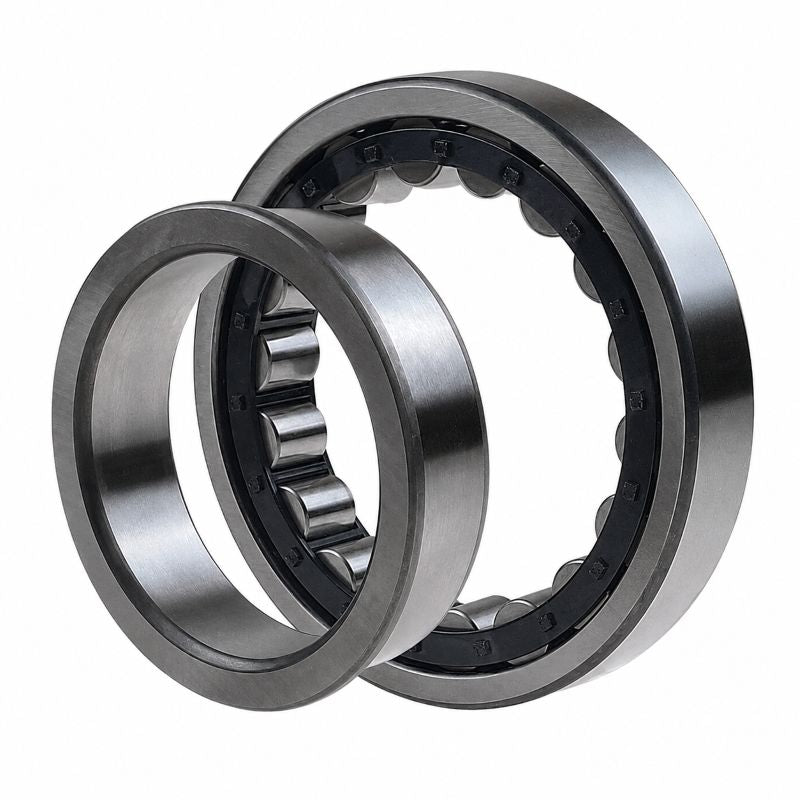

Codex NJ214 Single Row Cylindrical Roller Bearing 70x125x24mm
Codex NJ214 Single Row Cylindrical Roller Bearing 70x125x24mm
Regular price
£74.65
ex VAT£89.58inc. VAT
Regular price
Sale price
£74.65
ex VAT£89.58
inc. VAT
In stock
Price Break
10+
£66.44
19+
£62.71
29+
£61.96
39+
£61.21
49+
£60.47
74+
£59.72
99+
£55.99
199+
£55.24
249+
£54.50
499+
£53.75
999+
£52.26
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B | 24mm |
| Dynamic load C | 137 kN |
| Static load Co | 137 kN |
| Fatigue load limit Pu | 18 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 1.15 kg |
| Cage options | J.M.ML |
| d1 | 89.4mm |
| D1 | 109mm |
| F, E | 83.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.2mm |
| da min | 79mm |
| da max | 81mm |
| db min | 92mm |
| Da max | 116mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ214EC |
| Angle ring weight | 0.15kg |
| B1 | 7mm |
| B2 | 11mm |
