SKU: NJ213-CDX

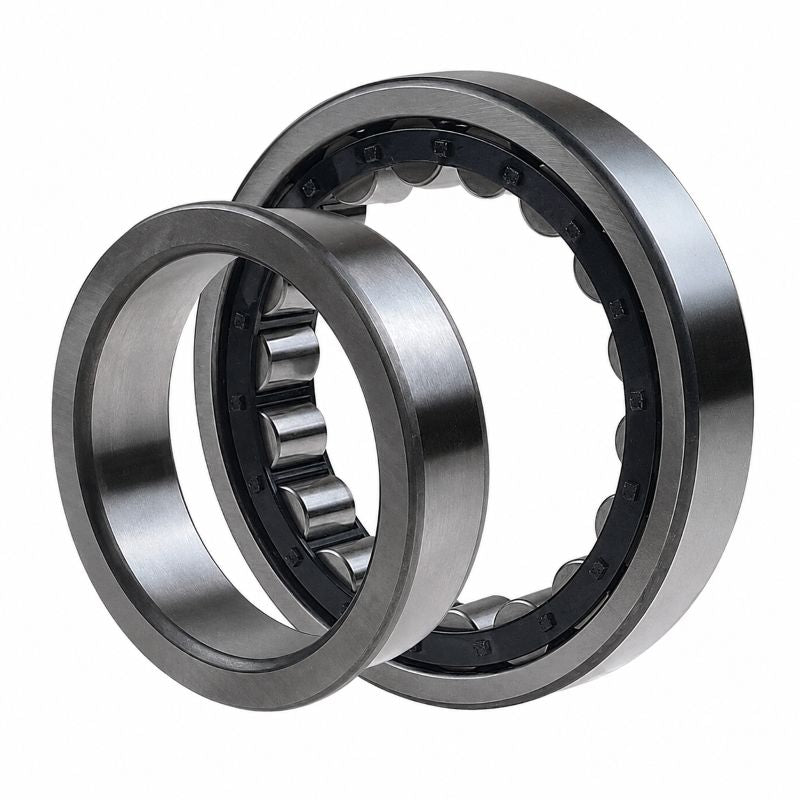

Codex NJ213 Single Row Cylindrical Roller Bearing 65x120x23mm
Codex NJ213 Single Row Cylindrical Roller Bearing 65x120x23mm
Regular price
£73.04
ex VAT£87.65inc. VAT
Regular price
Sale price
£73.04
ex VAT£87.65
inc. VAT
In stock
Price Break
10+
£65.00
19+
£61.35
29+
£60.62
39+
£59.89
49+
£59.16
74+
£58.43
99+
£54.78
199+
£54.05
249+
£53.32
499+
£52.59
999+
£51.13
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dynamic load C | 122 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 15.6 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.07 kg |
| Cage options | J.M.ML |
| d1 | 84.4mm |
| D1 | 104mm |
| F, E | 78.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.4mm |
| da min | 74mm |
| da max | 76mm |
| db min | 87mm |
| Da max | 111mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ213EC |
| Angle ring weight | 0.12kg |
| B1 | 6mm |
| B2 | 10mm |
