SKU: NAX.1023

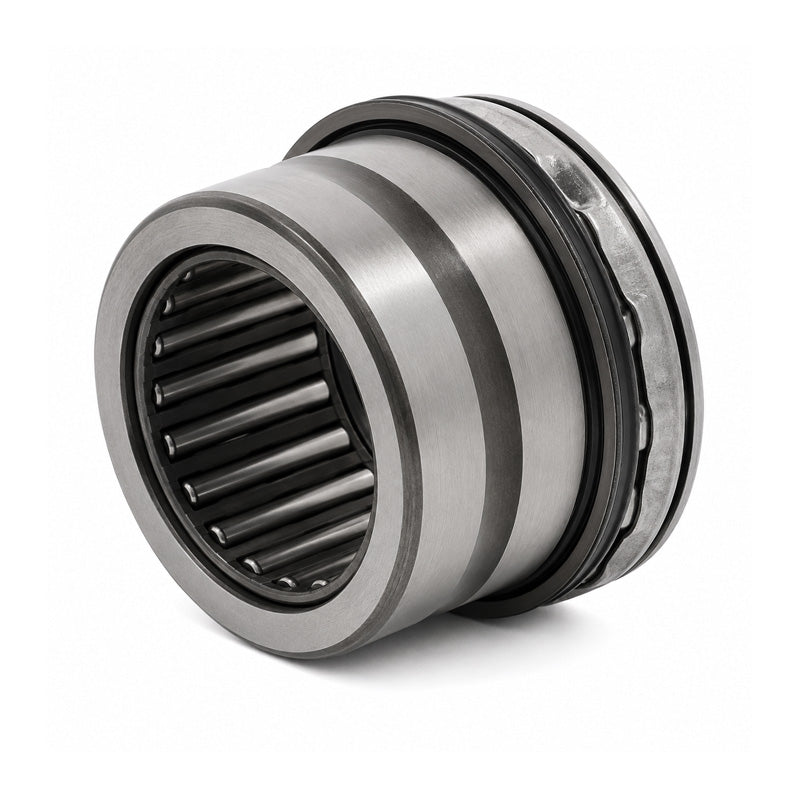

NAX1023 Needle Roller With Thrust Ball Bearing 10x25x23mm
NAX1023 Needle Roller With Thrust Ball Bearing 10x25x23mm
Regular price
£21.42
ex VAT£25.70inc. VAT
Regular price
Sale price
£21.42
ex VAT£25.70
inc. VAT
In stock
Price Break
10+
£19.06
19+
£17.99
29+
£17.78
39+
£17.56
49+
£17.35
74+
£17.14
99+
£16.07
199+
£15.85
249+
£15.64
499+
£15.42
999+
£14.99
Couldn't load pickup availability
Description
Description
IKO NAX Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 25mm
- Length:
- 23mm
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 19mm |
| D1 | 25mm |
| L | 23mm |
| H | 9mm |
| l1 | 6.5mm |
| rs min | 0.3mm |
| di | 10mm |
| da Min | 18mm |
| Dynamic load | 8230 N |
| Axial dynamic load | 10000 N |
| Static load | 9190 N |
| Axial static load | 11100 N |
| Allowable Rotational Speed | 9500rpm |
| Weight | 38.5g |
