SKU: NAO90x120x30-EU

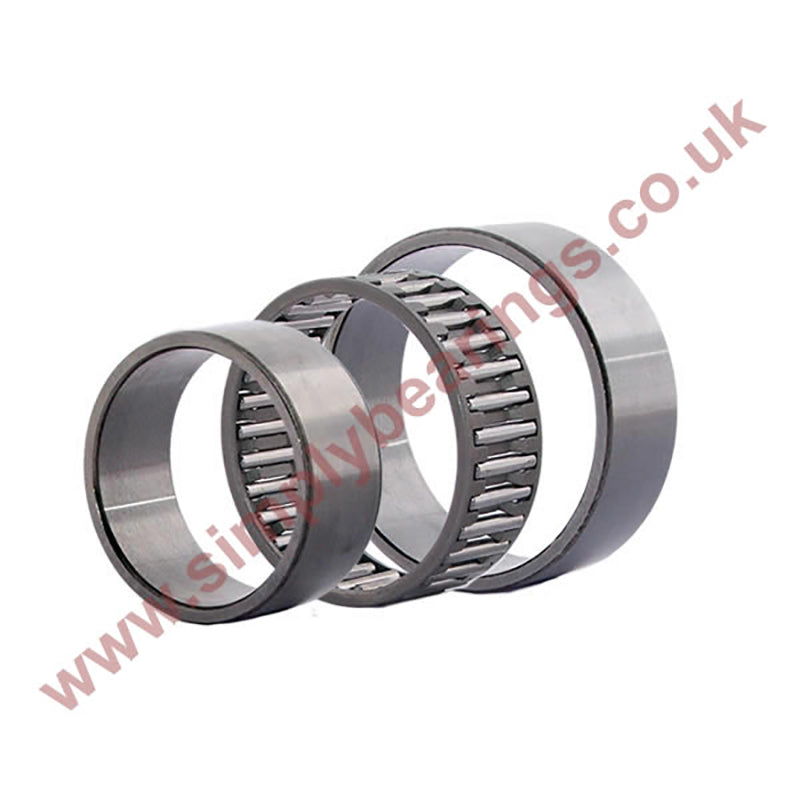

NAO90x120x30 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO90x120x30 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
£165.76
ex VAT£198.91inc. VAT
Regular price
Sale price
£165.76
ex VAT£198.91
inc. VAT
In stock
Price Break
10+
£147.53
19+
£139.24
29+
£137.58
39+
£135.92
49+
£134.27
74+
£132.61
99+
£124.32
199+
£122.66
249+
£121.00
499+
£119.35
999+
£116.03
Couldn't load pickup availability
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 30mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 120mm |
| B | 30mm |
| Dynamic load C | 67100 N |
| Static load Co | 190000 N |
| Fatigue load limit Pu | 23600 N |
| Speed in grease | 2800 rpm |
| Speed in oil | 4000 rpm |
| E | 108mm |
| F | 100mm |
| r1r2 min | 1mm |
| S (axial disp) | 1mm |
| da | 107.2mm |
| db | 99.3mm |
| Da | 109mm |
| Db | 101mm |
| ra max | 1mm |
| Weight | 1050 g |
