SKU: NAO17x35x16-MB

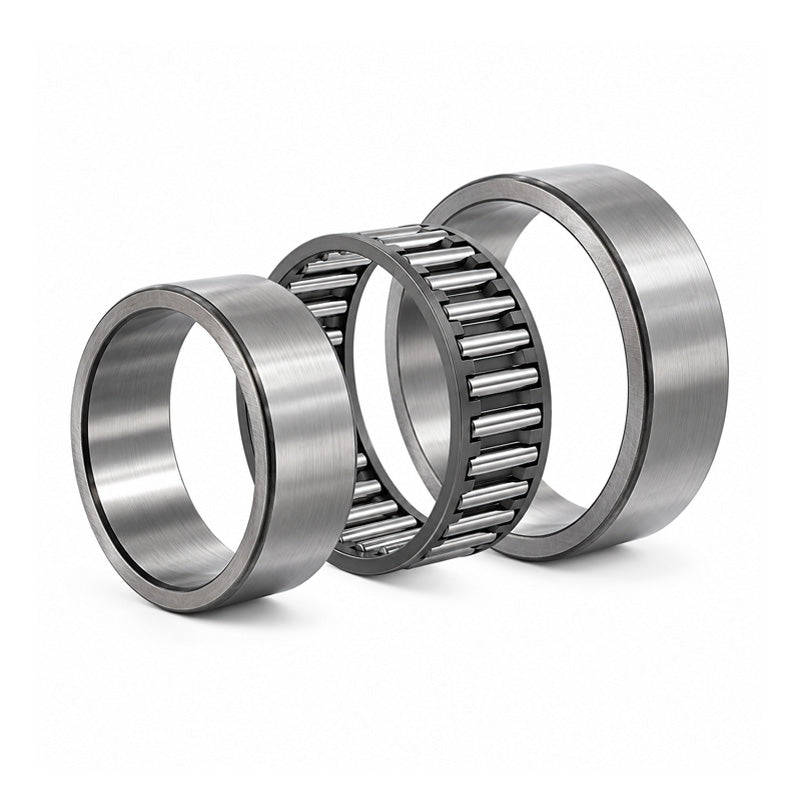

Major Brand NAO17x35x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO17x35x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
£28.97
ex VAT£34.76inc. VAT
Regular price
Sale price
£28.97
ex VAT£34.76
inc. VAT
In stock
Price Break
10+
£25.78
19+
£24.33
29+
£24.05
39+
£23.76
49+
£23.47
74+
£23.18
99+
£21.73
199+
£21.44
249+
£21.15
499+
£20.86
999+
£20.28
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load | 19400 N |
| Static load | 25500 N |
| Fatigue load limit Pu | 3050 N |
| Speed in grease | 11000 rpm |
| Speed in oil | 17000 rpm |
| E | 29mm |
| F | 22mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 28.4mm |
| db | 21.5mm |
| Da | 29.5mm |
| Db | 22.6mm |
| ra max | 0.3mm |
| Weight | 78 g |
