SKU: NA5905-NTN

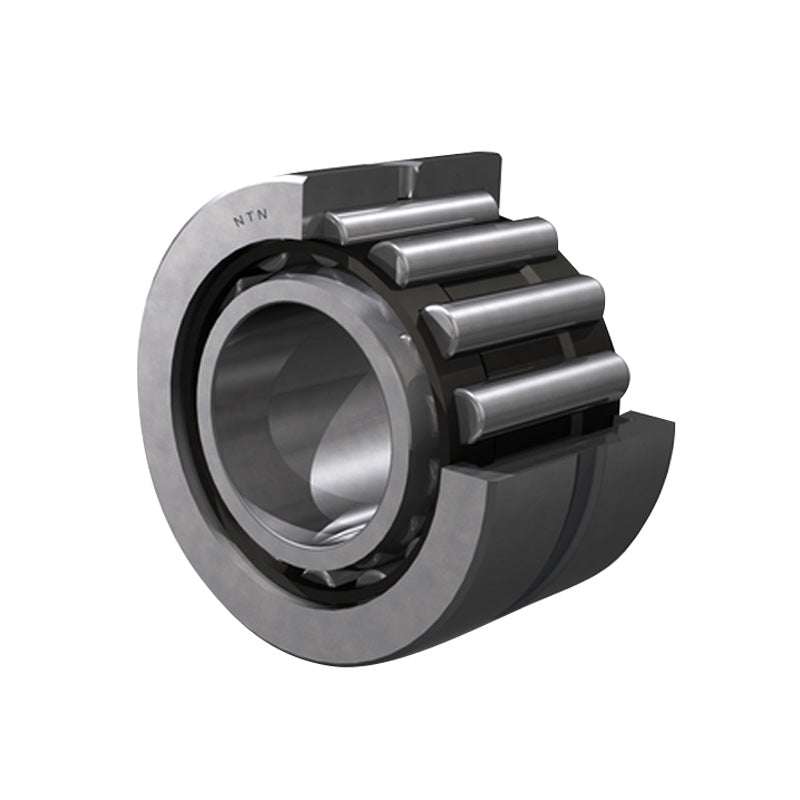

NTN NA5905 Machined Needle Roller Bearing with Shaft Sleeve 25x42x23mm - Allow 2-3 Days

NTN NA5905 Machined Needle Roller Bearing with Shaft Sleeve 25x42x23mm - Allow 2-3 Days
Regular price £35.45 ex VAT£42.54inc. VAT
Regular price Sale price £35.45 ex VAT£42.54 inc. VAT
Sale Sold out

In stock

Price Break
3+ £35.10
4+ £33.68
9+ £32.97
19+ £31.91
49+ £31.20
99+ £29.42
499+ £24.82
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 25mm
D - Outside diameter 42mm
C - Width of bearing, drawn cup or outer ring 23mm
F - Under roller diameter 30mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 0.8mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 30.5 kN
C0r - Static load rating 43 kN
N - Grease lubrication limit speed 8500 tr/min
N - Oil lubrication limit speed 13000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 27mm
Da max - Outer ring maximum shoulder diameter 40mm
ras max - Maximum shaft & housing fillet radius 0.3mm
