SKU: NA4926-NTN

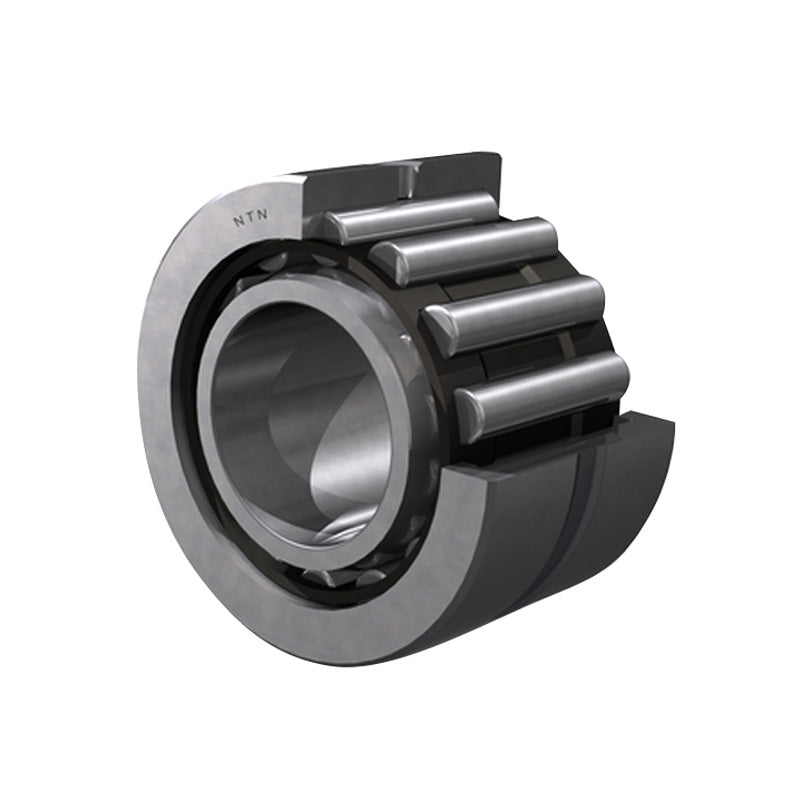

NTN NA4926 Machined Needle Roller Bearing with Shaft Sleeve 130x180x50mm - Allow 2-3 Days

NTN NA4926 Machined Needle Roller Bearing with Shaft Sleeve 130x180x50mm - Allow 2-3 Days
Regular price £265.96 ex VAT£319.15inc. VAT
Regular price Sale price £265.96 ex VAT£319.15 inc. VAT
Sale Sold out

In stock

Price Break
3+ £263.30
4+ £252.66
9+ £247.34
19+ £239.36
49+ £234.04
99+ £220.75
499+ £186.17
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 130mm
D - Outside diameter 180mm
C - Width of bearing, drawn cup or outer ring 50mm
F - Under roller diameter 150mm
rs - Minimum fillet radius 1.5mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 202 kN
C0r - Static load rating 455 kN
N - Grease lubrication limit speed 1800 tr/min
N - Oil lubrication limit speed 2700 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 138mm
Da max - Outer ring maximum shoulder diameter 172mm
ras max - Maximum shaft & housing fillet radius 1.5mm
