SKU: NA4848-NTN

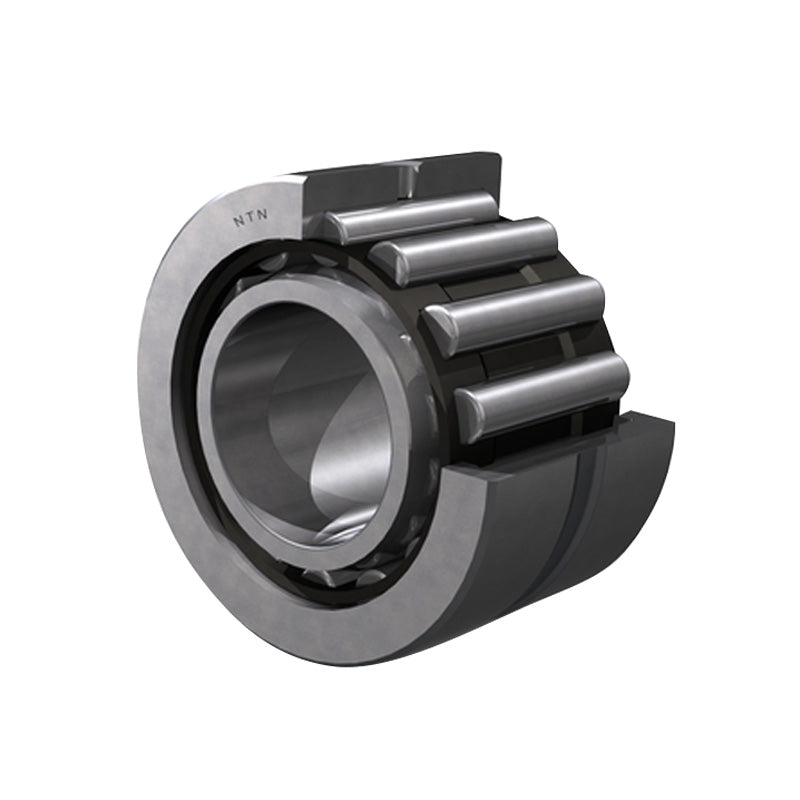

NTN NA4848 Machined Needle Roller Bearing with Shaft Sleeve 240x300x60mm - Allow 2-3 Days

NTN NA4848 Machined Needle Roller Bearing with Shaft Sleeve 240x300x60mm - Allow 2-3 Days
Regular price £1,006.62 ex VAT£1,207.94inc. VAT
Regular price Sale price £1,006.62 ex VAT£1,207.94 inc. VAT
Sale Sold out

In stock

Price Break
3+ £956.29
4+ £905.96
9+ £855.63
19+ £805.30
49+ £785.16
99+ £765.03
499+ £664.37
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 240mm
D - Outside diameter 300mm
C - Width of bearing, drawn cup or outer ring 60mm
F - Under roller diameter 265mm
rs - Minimum fillet radius 2mm
s - Max axial offset 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 4mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 360 kN
C0r - Static load rating 1080 kN
N - Grease lubrication limit speed 1000 tr/min
N - Oil lubrication limit speed 1500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 249mm
Da max - Outer ring maximum shoulder diameter 291mm
ras max - Maximum shaft & housing fillet radius 2mm
