SKU: NA4844-NTN

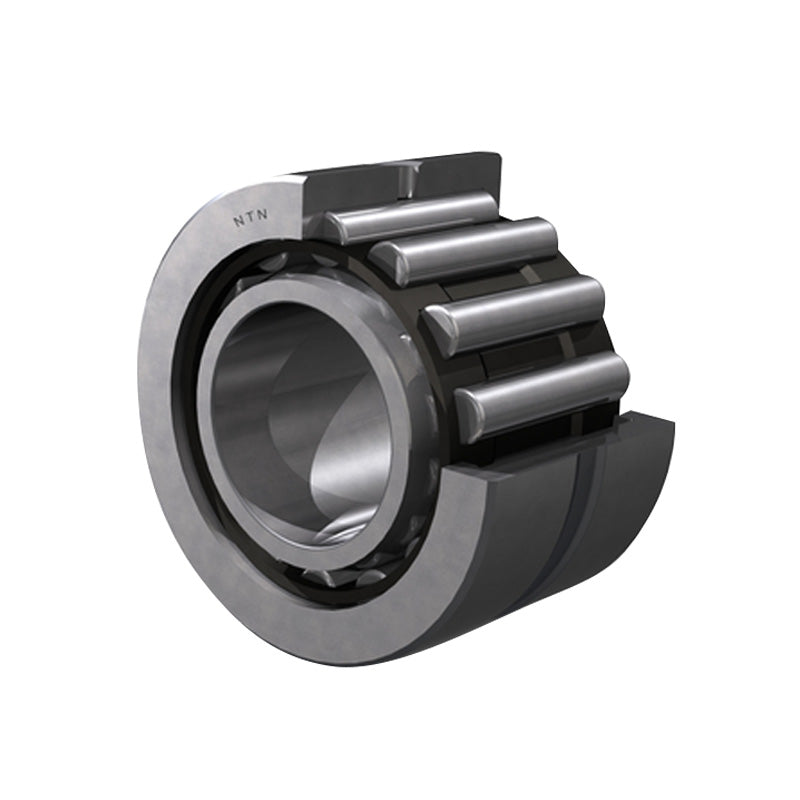

NTN NA4844 Machined Needle Roller Bearing with Shaft Sleeve 220x270x50mm - Allow 2-3 Days

NTN NA4844 Machined Needle Roller Bearing with Shaft Sleeve 220x270x50mm - Allow 2-3 Days
Regular price £855.58 ex VAT£1,026.70inc. VAT
Regular price Sale price £855.58 ex VAT£1,026.70 inc. VAT
Sale Sold out

In stock

Price Break
3+ £812.80
4+ £770.02
9+ £727.24
19+ £684.46
49+ £667.35
99+ £650.24
499+ £564.68
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

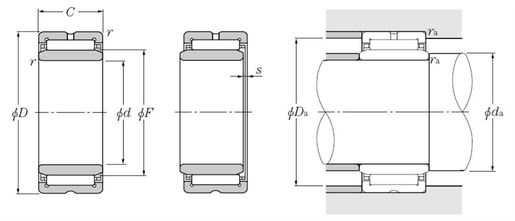

d - Inside diameter 220mm
D - Outside diameter 270mm
C - Width of bearing, drawn cup or outer ring 50mm
F - Under roller diameter 240mm
rs - Minimum fillet radius 1.5mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 4mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 244 kN
C0r - Static load rating 780 kN
N - Grease lubrication limit speed 1100 tr/min
N - Oil lubrication limit speed 1700 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 228mm
Da max - Outer ring maximum shoulder diameter 262mm
ras max - Maximum shaft & housing fillet radius 1.5mm
