SKU: NA4840-NTN

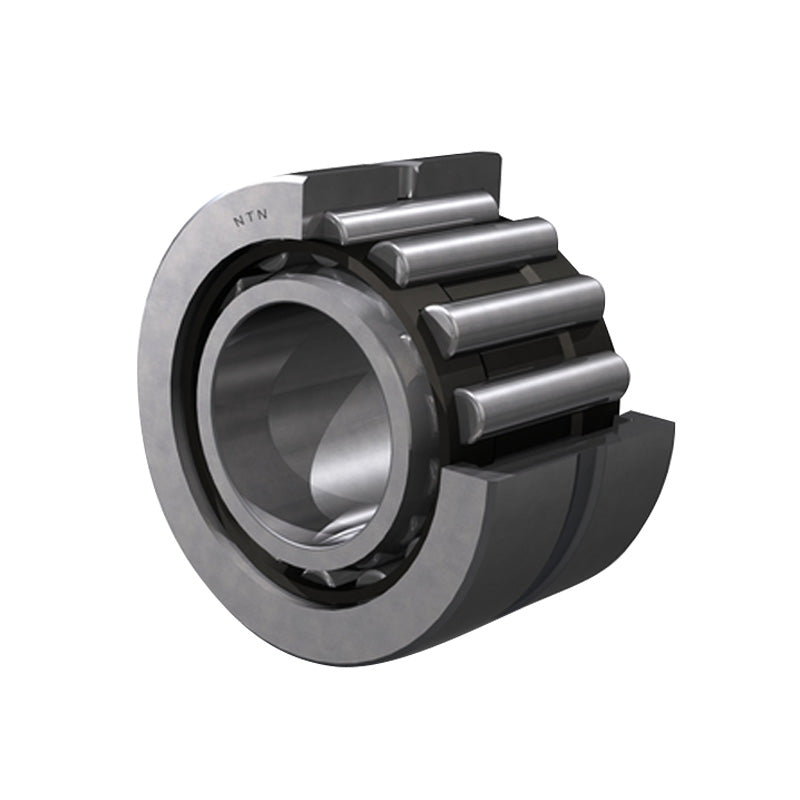

NTN NA4840 Machined Needle Roller Bearing with Shaft Sleeve 200x250x50mm - Allow 2-3 Days

NTN NA4840 Machined Needle Roller Bearing with Shaft Sleeve 200x250x50mm - Allow 2-3 Days
Regular price £704.36 ex VAT£845.23inc. VAT
Regular price Sale price £704.36 ex VAT£845.23 inc. VAT
Sale Sold out

In stock

Price Break
3+ £669.14
4+ £633.92
9+ £598.71
19+ £563.49
49+ £549.40
99+ £535.31
499+ £464.88
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 200mm
D - Outside diameter 250mm
C - Width of bearing, drawn cup or outer ring 50mm
F - Under roller diameter 220mm
rs - Minimum fillet radius 1.5mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 231 kN
C0r - Static load rating 705 kN
N - Grease lubrication limit speed 1200 tr/min
N - Oil lubrication limit speed 1800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 208mm
Da max - Outer ring maximum shoulder diameter 242mm
ras max - Maximum shaft & housing fillet radius 1.5mm
