SKU: NA4836-NTN

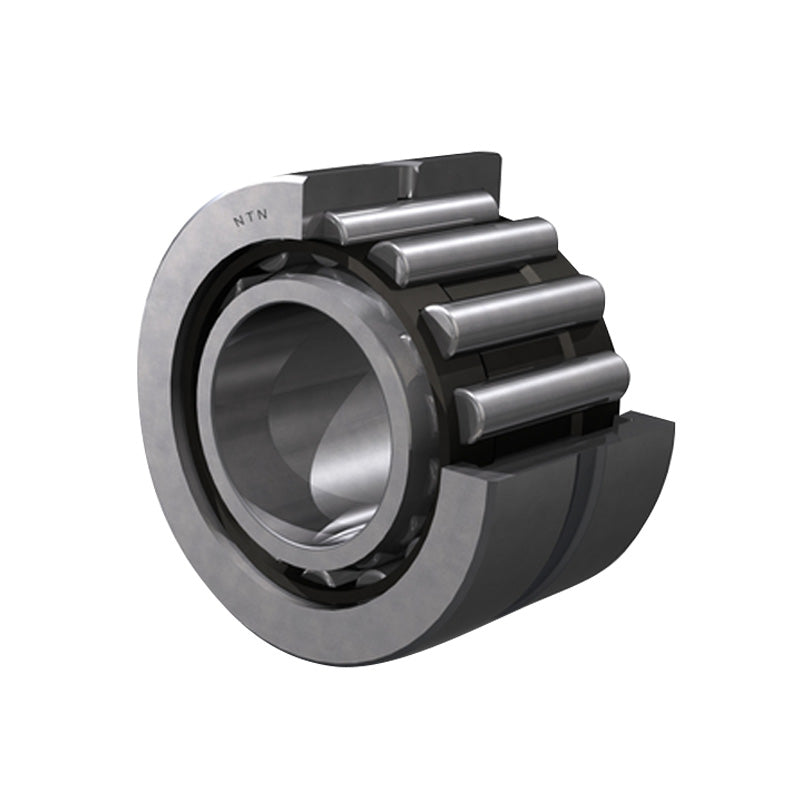

NTN NA4836 Machined Needle Roller Bearing with Shaft Sleeve 180x225x45mm - Allow 2-3 Days

NTN NA4836 Machined Needle Roller Bearing with Shaft Sleeve 180x225x45mm - Allow 2-3 Days
Regular price £553.98 ex VAT£664.78inc. VAT
Regular price Sale price £553.98 ex VAT£664.78 inc. VAT
Sale Sold out

In stock

Price Break
3+ £548.44
4+ £526.28
9+ £515.20
19+ £498.58
49+ £487.50
99+ £459.80
499+ £387.79
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 180mm
D - Outside diameter 225mm
C - Width of bearing, drawn cup or outer ring 45mm
F - Under roller diameter 195mm
rs - Minimum fillet radius 1.1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 195 kN
C0r - Static load rating 540 kN
N - Grease lubrication limit speed 1400 tr/min
N - Oil lubrication limit speed 2100 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 186.5mm
Da max - Outer ring maximum shoulder diameter 218.5mm
ras max - Maximum shaft & housing fillet radius 1mm
