SKU: NA2201.2RS-EU

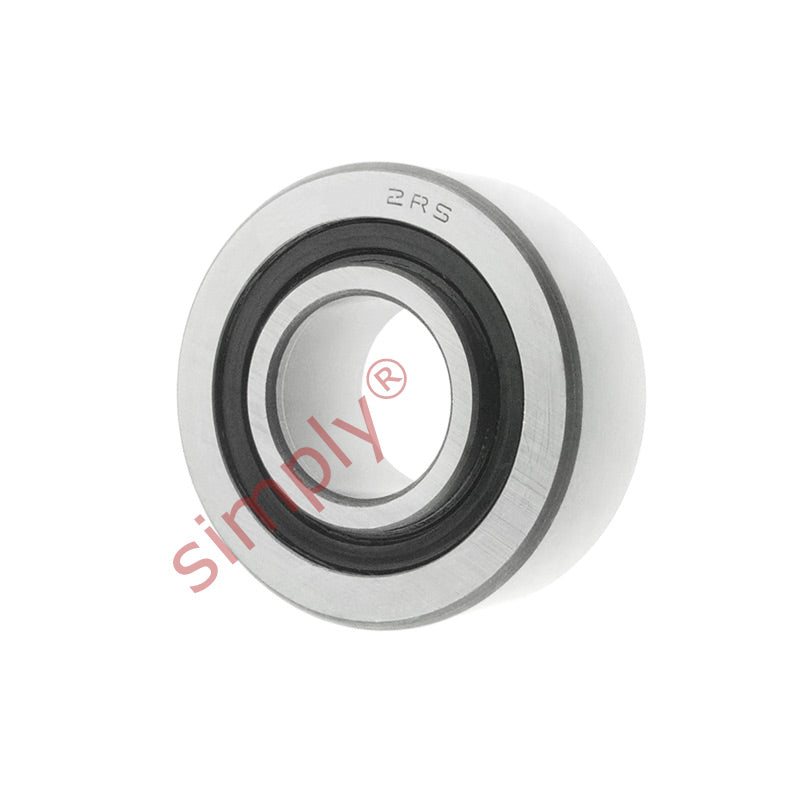

NA22012RS Budget Support Roller no Axial Guidance with Inner Sleeve 12x32x13.8mm
NA22012RS Budget Support Roller no Axial Guidance with Inner Sleeve 12x32x13.8mm
Regular price
£10.05
ex VAT£12.06inc. VAT
Regular price
Sale price
£10.05
ex VAT£12.06
inc. VAT
Equivalent to: NA2201LL
In stock
Price Break
10+
£8.94
19+
£8.44
29+
£8.34
39+
£8.24
49+
£8.14
74+
£8.04
99+
£7.54
199+
£7.44
249+
£7.34
499+
£7.24
999+
£7.04
Description
Description
Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
Equivalent: NA2201LL
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 13.8mm
- Seals / Shields:
- Rubber Seals
Technical
Technical
| D | 32mm |
|---|---|
| C | 13.8mm |
| d | 12mm |
| B | 14mm |
| D1 | 22mm |
| F | 16mm |
| r min | 0.6mm |
| r1r2 min | 0.3mm |
| Speed rating | 4700 rpm |
| Dynamic load | 6930 N |
| Basic static load | 8150 N |
| Fatigue load limit Pu | 965 N |
| Max radial dynamic force | 11600 N |
| Max radial static force | 16600 N |
| Weight | 67 g |
