SKU: N320ECP-SKF

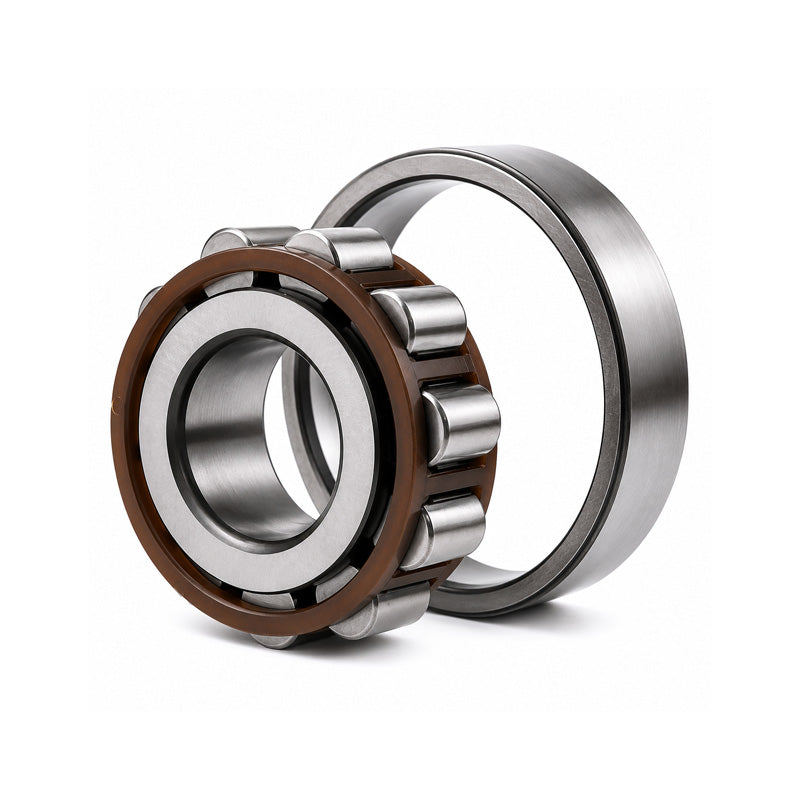

SKF N320ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 100x215x47mm

Name: SKF N320ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 100x215x47mm
Brand: SKF
SKU: N320ECP-SKF
Price: 492.65 GBP
Availability: InStock

£492.65 ex VAT£591.18inc. VAT

£492.65 ex VAT£591.18 inc. VAT

Sale Sold out

In stock

Price Break

10+ £438.46

19+ £413.83

29+ £408.90

39+ £403.98

49+ £399.05

74+ £394.12

99+ £369.49

199+ £364.56

249+ £359.64

499+ £354.71

999+ £344.86

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 215mm
Width:: 47mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	100mm
D	215mm
B	47mm
Dynamic load C	450 kN
Static load Co	440 kN
Fatigue load limit Pu	51 kN
Reference speed	3200 rpm
Limiting speed	3800 rpm
Weight	7.5 kg
Alt cage	M
d1	139mm
F,E	191.5mm
r1r2 min	3mm
r3r4 min	3mm
S	2.9mm
da min	114mm
da max	188mm
db	195mm
Da max	201mm
ra max	2.5mm
rb max	2.5mm
kr	0.15
