SKU: N319ECP-SKF

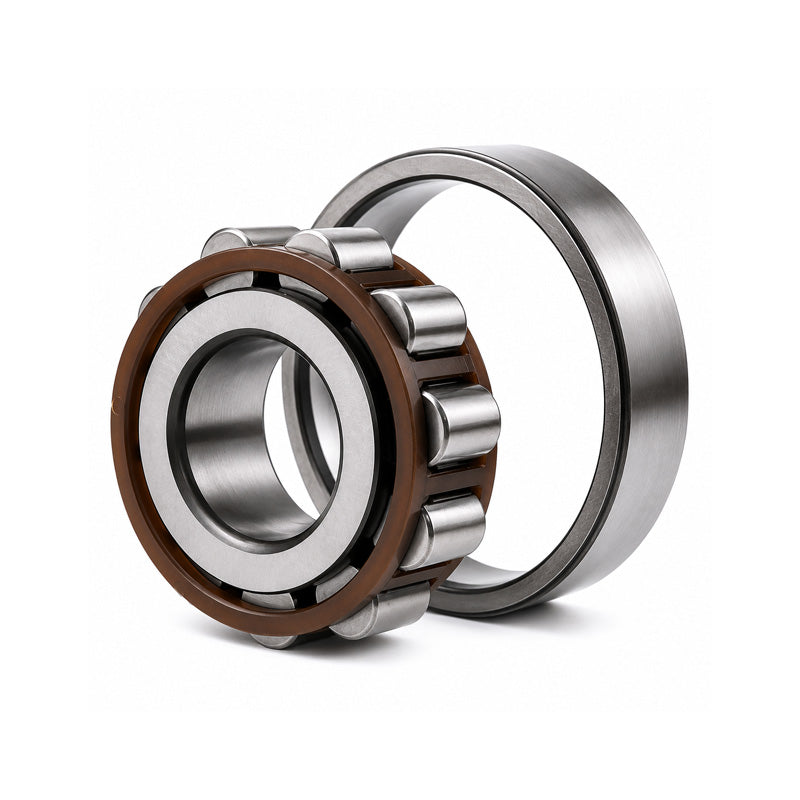

SKF N319ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x200x45mm

Name: SKF N319ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x200x45mm
Brand: SKF
SKU: N319ECP-SKF
Price: 437.97 GBP
Availability: InStock

£437.97 ex VAT£525.56inc. VAT

£437.97 ex VAT£525.56 inc. VAT

Sale Sold out

In stock

Price Break

10+ £389.79

19+ £367.89

29+ £363.51

39+ £359.13

49+ £354.75

74+ £350.37

99+ £328.48

199+ £324.10

249+ £319.72

499+ £315.34

999+ £306.58

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 95mm
Outside Diameter:: 200mm
Width:: 45mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	95mm
D	200mm
B	45mm
Dynamic load C	390 kN
Static load Co	390 kN
Fatigue load limit Pu	46.5 kN
Reference speed	3600 rpm
Limiting speed	4300 rpm
Weight	6.2 kg
Alt cage	M
d1	132mm
F,E	177.5mm
r1r2 min	3mm
r3r4 min	3mm
S	2.9mm
da min	109mm
da max	174mm
db	181mm
Da max	186mm
ra max	2.5mm
rb max	2.5mm
kr	0.15
