SKU: N210-EU

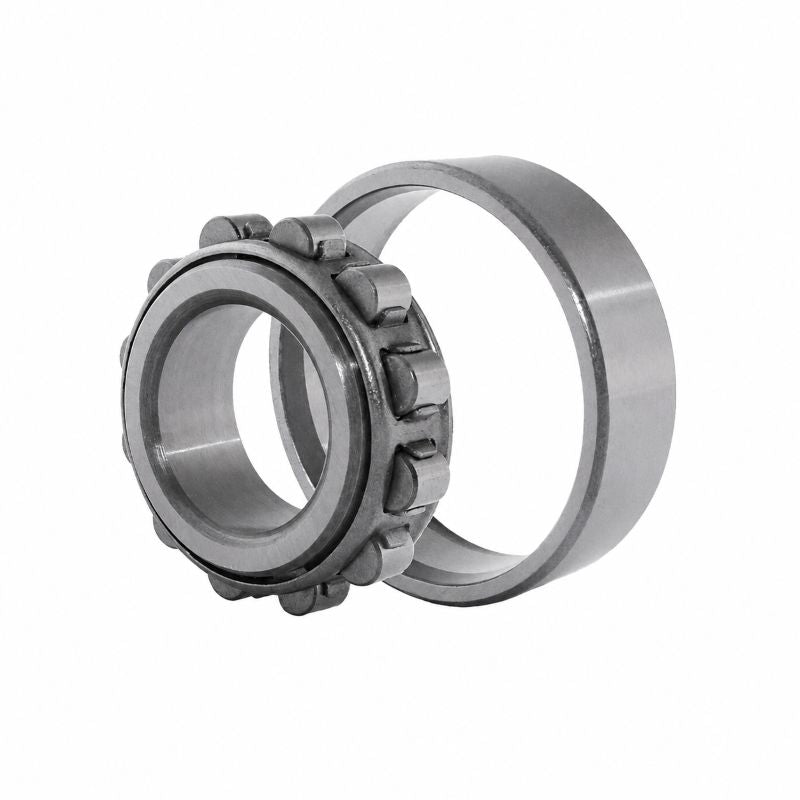

N210 Budget Single Row Cylindrical Roller Bearing 50x90x20mm
N210 Budget Single Row Cylindrical Roller Bearing 50x90x20mm
Regular price
£21.95
ex VAT£26.34inc. VAT
Regular price
Sale price
£21.95
ex VAT£26.34
inc. VAT
In stock
Price Break
10+
£19.54
19+
£18.44
29+
£18.22
39+
£18.00
49+
£17.78
74+
£17.56
99+
£16.46
199+
£16.24
249+
£16.02
499+
£15.80
999+
£15.37
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| Dynamic load C | 73.5 kN |
| Static load Co | 69.5 kN |
| Fatigue load limit Pu | 8.8 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.48 kg |
| d1 | 64mm |
| F, E | 81.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| s | 1.5mm |
| da min | 57mm |
| da max | 79mm |
| db min | 83mm |
| Da max | 83mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.15 |
